Kia Optima: Drive Belt System / Crankshaft Damper Pulley

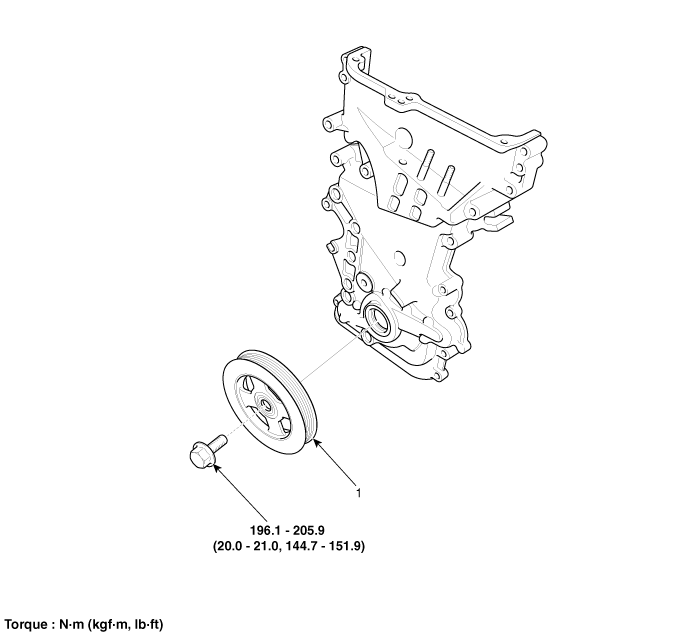

Components and components location
1. Crankshaft damper pulley
|
|
Repair procedures
1. |
Remove the RH front wheel.
|
2. |
Remove the drive belt.
(Refer to Drive Belt System - "Drive Belt")
|
3. |

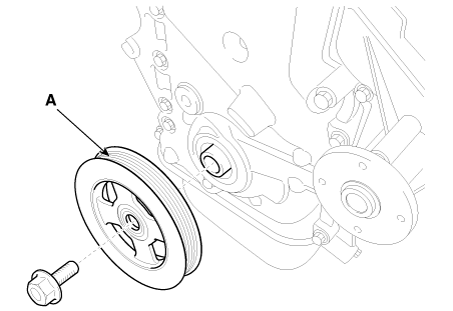

Remove the crankshaft damper pulley (A).
Tightening torque :
196.1 - 205.9 N•m (20.0 - 21.0 kgf•m, 144.7 - 151.9 lb•ft)
|
Do not press the pulley or apply the excessive force to prevent
the rubber part from being deformed.
|
There are two methods to hold the ring gear when removing the
crankshaft damper pulley.
•
|

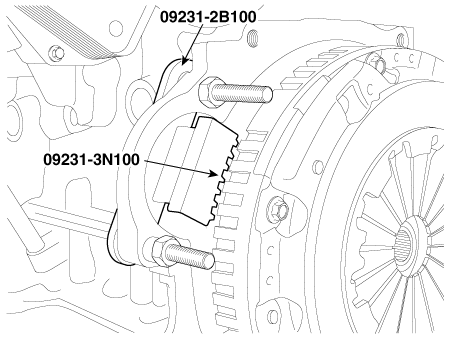

Install the SST (09231-2B100, 09231-3N100) to hold the
ring gear after removing the starter.
|
•
|

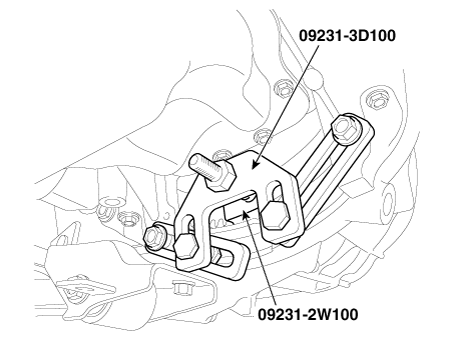

Install the SST (09231-3D100, 09231-2W100) to hold the
ring gear after removing the service cover.
|
1) |

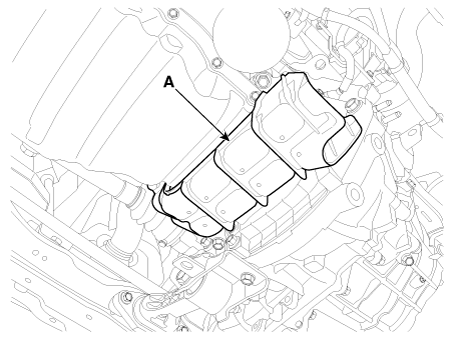

Remove the air guide (A).
Tightening torque :
8.8 - 13.7 N•m (0.9 - 1.4 kgf•m, 6.5 - 10.1 lb•ft)
|
|
2) |

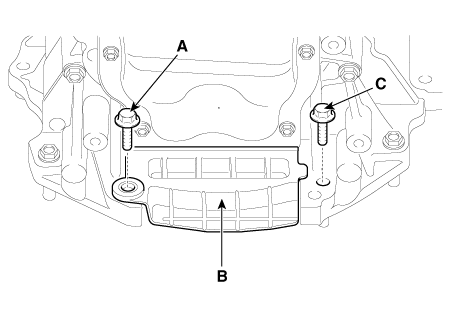

Remove the transaxle mounting bolt (A) and the service
cover (B) on the bottom of the lower crankcase.
|
3) |
Remove the transaxle mounting bolt (C) on the bottom
of the lower crankcase.
|
4) |

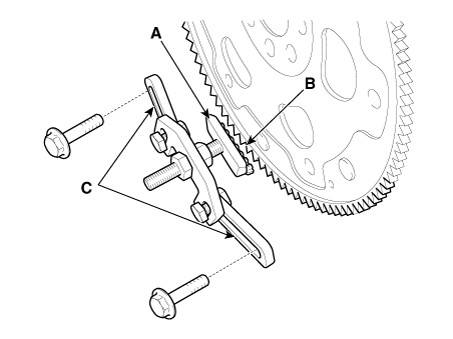

Adjust the length of the holder (A) so that the grooves
of the holder puts into the ring gears (B) at the closest
position.
|
5) |
Adjust the angle and length of the links (C) so that
the two transaxle mounting bolts can be fastened into the
original mounted holes.
|
6) |
Install the SST using the two transaxle mounting bolts.
Tighten the bolts and nuts of the holder and links securely.
|
|
|
4. |
Install in the reverse order of removal.
|
Check the crankshaft damper pulley for vibration in rotation, oil dust deposit
of V-ribbed part. Replace if necessary.
