Kia Optima DL3: Light bulbs / Front fog lamp bulb replacement. Side repeater lamp (LED type) bulb replacement
Front fog lamp bulb replacement

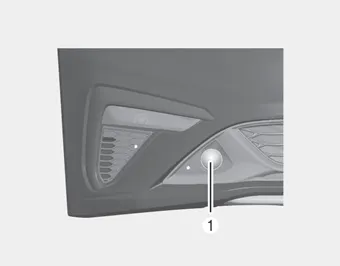

■ Front fog lamp
If the front fog lamp (1) does not operate, have the vehicle checked by an authorized Kia dealer.

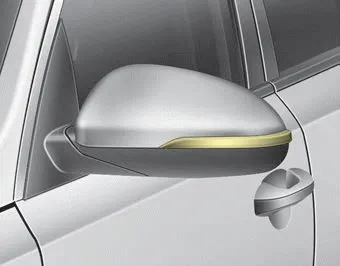

Side repeater lamp (LED type) bulb replacement
If the side repeater lamp (LED) does not operate, have the vehicle checked by an authorized Kia dealer.
The LED lamp cannot be replaced as a single component because it is an integrated unit. The LED lamp has to be replaced with the unit.
A skilled technician should check or repair the side repeater lamp (LED), for it may damage related parts of the vehicle.
Front turn signal lamp bulb replacement If the front turn signal lamp (1) does not operate, have the vehicle checked by an authorized Kia dealer.
1. Open the trunk lid. 2. Open the service cover. 3. Remove the nuts from the vehicle. 4. Disconnect the rear combination lamp connector. 5.
