Kia Optima DL3: Light bulbs / Front turn signal lamp bulb replacement. Position lamp / Day time running lamp (LED type) replacement
Front turn signal lamp bulb replacement

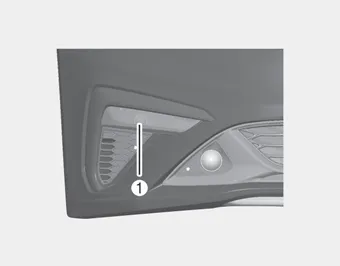

If the front turn signal lamp (1) does not operate, have the vehicle checked by an authorized Kia dealer.
Position lamp / Day time running lamp (LED type) replacement

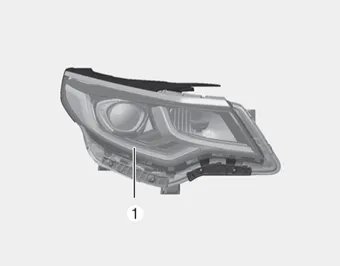

■ Head lamp
If the position lamp + DRL (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer. The LED lamp cannot be replaced as a single component because it is an integrated unit. The LED lamp has to be replaced with the unit.
A skilled technician should check or repair the position lamp + DRL (LED), for it may damage related parts of the vehicle.
1. Open the hood. 2. Remove the headlamp bulb cover by turning it counterclockwise. 3. Disconnect the headlamp bulb socket-connector. 4. Remove the bulb-socket from the headlamp assembly by turning the bulb-socket counterclockwise until the tabs on the bulb-socket align with the slots on the headlamp assembly.
Front fog lamp bulb replacement ■ Front fog lamp If the front fog lamp (1) does not operate, have the vehicle checked by an authorized Kia dealer.
