Kia Optima DL3: Light bulbs / Room lamp bulb replacement. Personal lamp (LED type) bulb replacement

Room lamp bulb replacement

■ Type A

■ Type B

WARNING - Interior lamps

Prior to working on the Interior lamps, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.

1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb in the socket.

4. Align the lens cover tabs with the lamp housing notches and snap the lens into place.

✽ NOTICE

Be careful not to dirty or damage the lens, lens tab, and plastic housings.

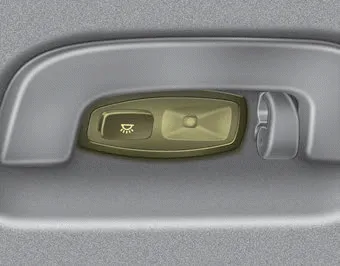

Personal lamp (LED type) bulb replacement

If the personal lamp (LED) does not operate, have the vehicle checked by an authorized Kia dealer.

The LED lamp cannot be replaced as a single component because it is an integrated unit. The LED lamp has to be replaced with the unit.

A skilled technician should check or repair personal lamp (LED), for it may damage related parts of the vehicle.
