Kia Optima: If you have a flat tire (with Tire Mobility Kit) / Components of the Tire Mobility Kit (TMK)

Kia Optima DL3 2019-2020 Owner's Manual / What to do in an emergency / If you have a flat tire (with Tire Mobility Kit) / Components of the Tire Mobility Kit (TMK)

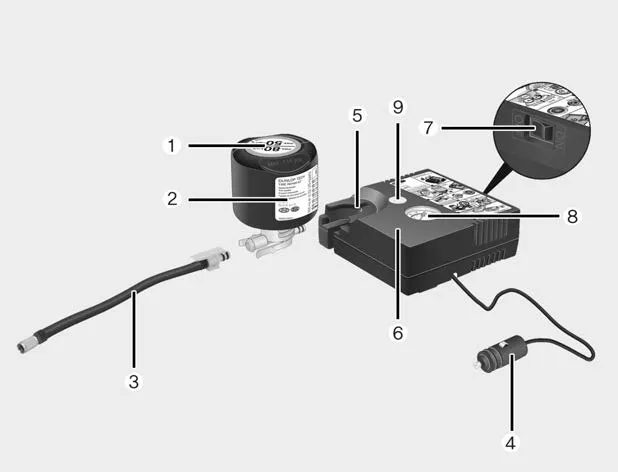

1. Speed restriction label
2. Sealant bottle and label with speed restriction
3. Filling hose from sealant bottle to wheel
4. Connectors and cable for the power outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7. On/off switch
8. Pressure gauge for displaying the tire inflation pressure
9. Button for reducing tire inflation pressure

Connectors and cable are stored in the compressor housing.

WARNING - Expired sealant

Do not use the Tire sealant after the sealant has expired (i.e. after the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING - Sealant

✽ NOTICE

The sealant container and insert hose (3) cannot be reused.

Notes on the safe use of the Tire Mobility Kit
Park your car at the side of the road so that you can work with the Tire Mobility Kit away from moving traffic. To be sure your vehicle will not move, even when you're on fairly level groun ...

Using the Tire Mobility Kit
1. Detach the speed restriction label (1) from the sealant bottle (2), and place it in a highly visible place inside the vehicle such as on the steering wheel to remind the driver not to drive too ...
