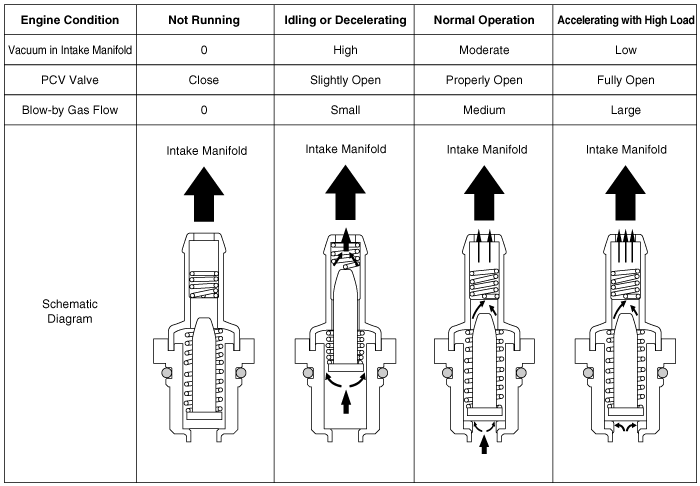

| Operation Principle |

| Removal |
| 1. |

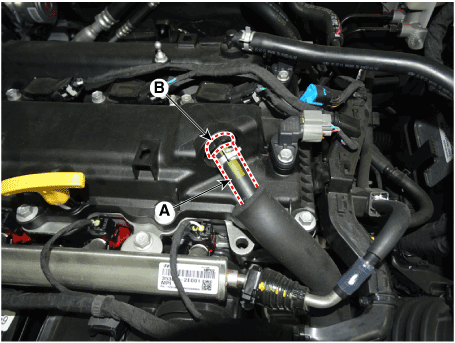

Disconnect the vapor hose (A). |
| 2. |
Remove the PCV valve (B).
|
| Inspection |
| 1. |

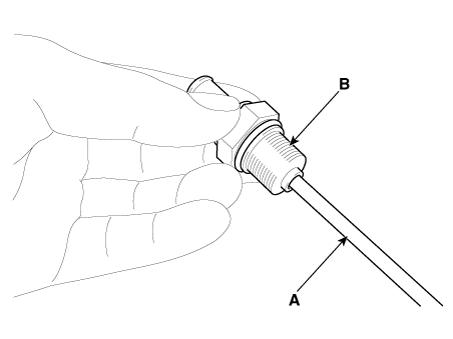

Insert a thin stick (A) into the PCV valve (B) from the threaded side to check that the plunger moves.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Schematic diagrams Schematic Diagram Repair procedures Inspection 1. After disconnecting the vapor hose from the PCV valve, remove the PCV valve.
Description and operation Description Evaporative Emission Control System prevents fuel vapor stored in fuel tank from vaporizing into the atmosphere.
