Kia Optima: Features of your vehicle / Smart trunk
On a vehicle equipped with a smart key, the trunk lock is released with no-touch
activation using the Smart Trunk system.
How to use the Smart Trunk
The trunk can be opened with notouch activation if the following conditions are
met:
- It has been over 15 seconds since all doors closed and locked
- The smart key is positioned in the detecting area for more than 3 seconds.
✽ NOTICE
- The Smart Trunk does not operate when:
- The smart key is detected within 15 seconds after the doors are closed and
locked, and is continuously detected.
- The smart key is detected within 15 seconds after the doors are closed and
locked, and 1.5 m (60 inches) from the front door handles (for vehicles equipped
with Welcome Light).
- A door is not locked or closed.
- The smart key is in the vehicle.
1. Setting
To activate the Smart Trunk, go to User Settings Mode and select Smart Trunk
on the LCD display.
❈ For more details, refer to “LCD Display” in this chapter.

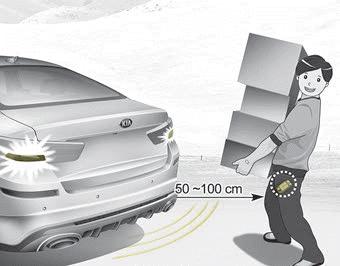

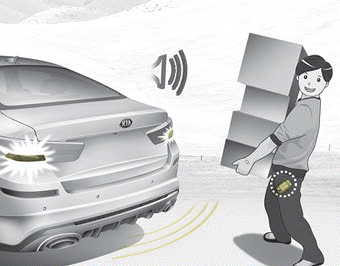

2. Detect and Alert
If you are positioned in the detecting area (50 ~100 cm (20 ~ 40 inches) behind
the vehicle) carrying a smart key, the hazard warning lights will blink and the
chime will sound for about 3 seconds to alert you the smart key has been detected
and the trunk will open.
✽ NOTICE
Do not approach the detecting area if you do not want the trunk to open. If
you have unintentionally entered the detecting area and the hazard warning lights
and chime starts to operate, leave the detecting area with the smart key. The trunk
will stay closed.

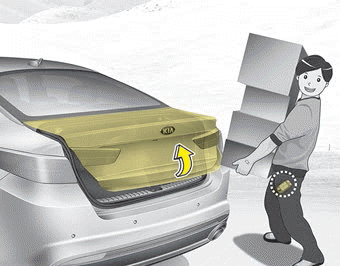

3. Automatic opening
The hazard warning lights will blink and the chime will sound 2 times and then
the trunk lock will be released.
Make certain that you close the trunk before driving your vehicle.
Make sure there are no people or objects around the trunk before opening or closing
the trunk.
Make sure to deactivate the Smart trunk function when washing your vehicle.
Otherwise, the trunk may open inadvertently.
WARNING
Make sure objects in the rear cargo area do not come out when opening the
trunk as this could cause serious injury.
✽ NOTICE
The key should be kept out of reach of children. Children may inadvertently
open the Smart Trunk while playing around the rear area of the vehicle.

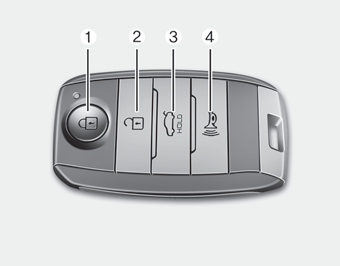

How to deactivate the Smart Trunk function using the smart key
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
If you press any button of the smart key during the Detect and Alert stage, the
Smart Trunk function will be deactivated.
Make sure to be aware of how to deactivate the Smart Trunk function for emergency
situations.
✽ NOTICE
- If you press the door unlock button (2), the Smart Trunk function will
be deactivated temporarily. But, if you do not open any door for 30 seconds,
the smart trunk function will be activated again.
- If you press the trunk open button (3) for more than 1 second, the trunk
opens.
- If you press the door lock button (1) or trunk open button (3) when the
Smart Trunk function is not in the Detect and Alert stage, the smart trunk function
will not be deactivated.
- If you have deactivated the Smart Trunk function by pressing the smart
key button and opened a door, the smart trunk function can be activated again
by closing and locking all doors.

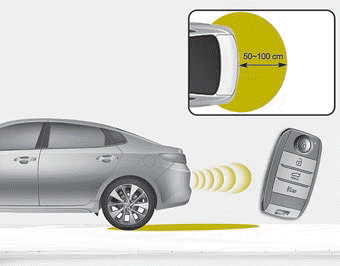

Detecting area
- The Smart Trunk operates a welcome alert if the smart key is detected within
50 ~ 100 cm (20 ~ 40 inches) from the trunk.
- The alert stops if the smart key is positioned outside the detecting area
during the Detect and Alert stage.
✽ NOTICE
- The Smart Trunk function will not work if any of the following occurs:
- The smart key is close to a radio transmitter such as a radio station or an
airport which can interfere with normal operation of the transmitter.
- The smart key is near a mobile two way radio system or a cellular phone.
- Another vehicle's smart key is being operated close to your vehicle.
- The detecting range may decrease or increase when :
- One side of the vehicle is raised to replace a tire or to inspect the vehicle.
- The vehicle is parked on a slope or unpaved road, etc.
