Repair procedures

Removal

1.	Disconnect the negative (-) battery cable.

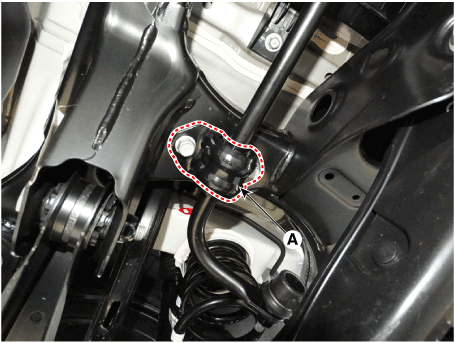

Remove the stabilizer bar bushing (A).

Tightening torque :

7.8 - 9.8 N.m (4.5 - 5.5 kgf.m, 5.8 - 7.2 lb-ft)

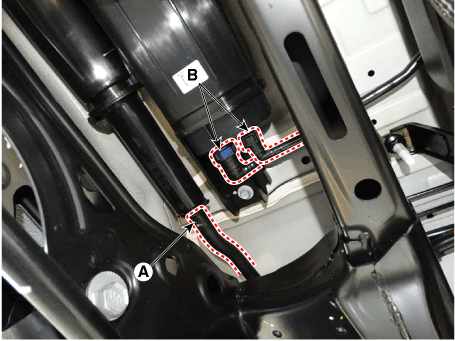

3.	Disconnect the vent hose quick-connector (A), the vapor hose quick-connector (B) from the canister.

Remove the canister after loosening the mounting bolts (A).

Tightening torque :

7.8 - 9.8 N.m (1.9 - 2.4 kgf.m, 5.8 - 7.2 lb-ft)

Inspection

Check for the following items visually.

–	Cracks or leakage of the canister

–	Loose connection, distortion, or damage of the vapor hose/tube

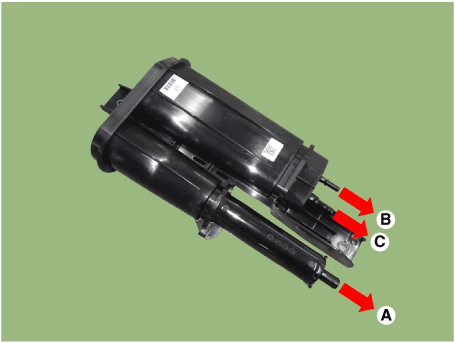

A : Canister ↔ Atmosphere

B : Canister ↔ Fuel Tank

C : Canister ↔ Intake Manifold

Installation

1.	Install in the reverse order of removal.
