Repair procedures

Replacement

•

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•

Take care not to bend or scratch the trim and panels.

•

Put on gloves to prevent hand injuries.

1.

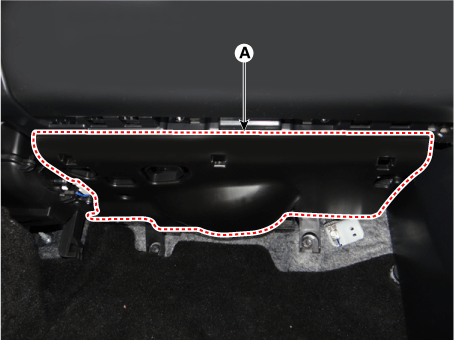

Using a remover and remove the crash pad under cover (A).

2.

To install, reverse the removal procedure.



Replace any damaged clips (or pin-type retainers).
