| Component Location |

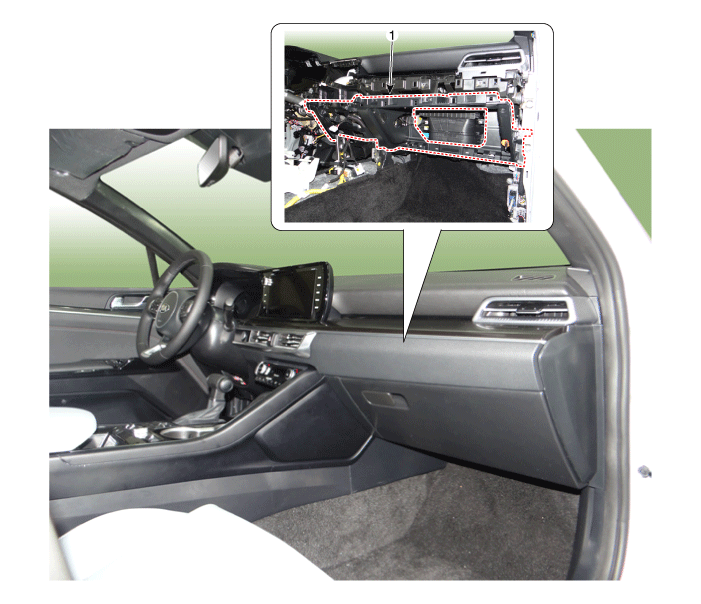

| 1. Crash pad center panel |
| Replacement |
|
| 1. |

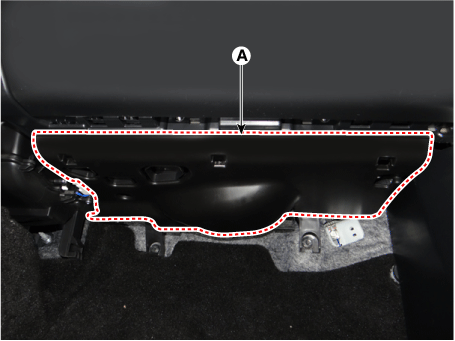

Using a remover and remove the crash pad under cover (A).
|
| 2. |
Remove the floor console assembly. (Refer to Floor Console - "Floor Console Assembly") |
| 3. |
Remove the cowl side trim. (Refer to Interior Trim - "Cowl Side Trim") |
| 4. |
Remove the glove box. (Refer to Crash Pad - "Glove Box") |
| 5. |
Remove the crash pad lower panel. (Refer to Crash Pad - "Crash Pad Lower Panel") |
| 6. |
Remove the crash pad garnish. (Refer to Crash Pad - "Crash Pad Garnish") |
| 7. |
Remove the heater & A/C control unit . (Refer to Heating,Ventilation, Air Conditioning - "Heater & A/C Control Unit (MANUAL)") (Refer to Heating,Ventilation, Air Conditioning - "Heater & A/C Control Unit (DATC)") (Refer to Heating,Ventilation, Air Conditioning - "Heater Control Unit") |
| 8. |

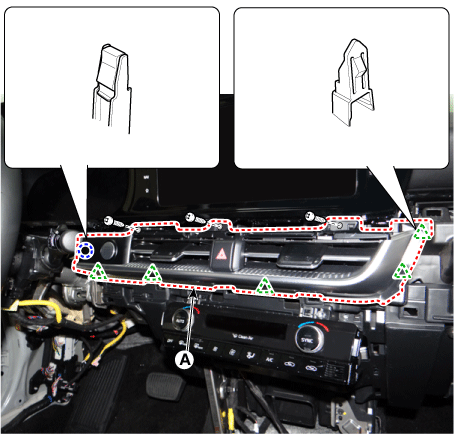

After loosening the mounting screws, remove the center air vent garnish (A).
|
| 9. |

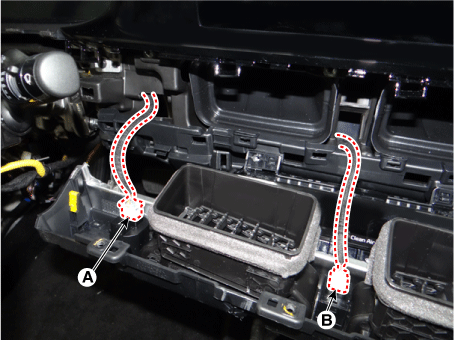

Disconnect the start swich connector (A) hazard swich connector (B).
|
| 10. |

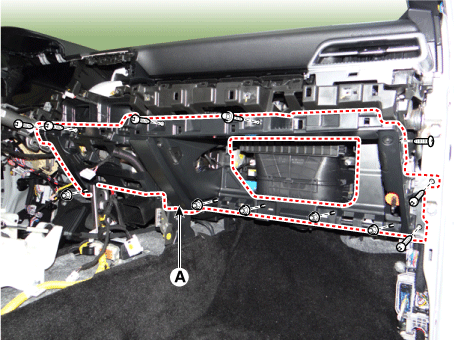

After loosening the mounting bolt and nuts, screws, remove the crash pad center panel (A).
|
| 11. |
To install, reverse the removal procedure.
|
Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
