Components and components location

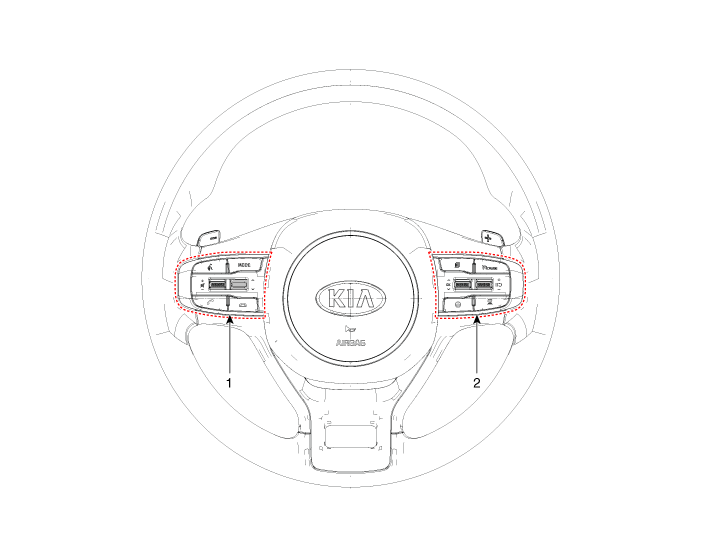

Components

1. Left remote control switch (Audio + Bluetooth + Voice)
2. Right remote control switch (Trip + SCC + LFA)

Schematic diagrams

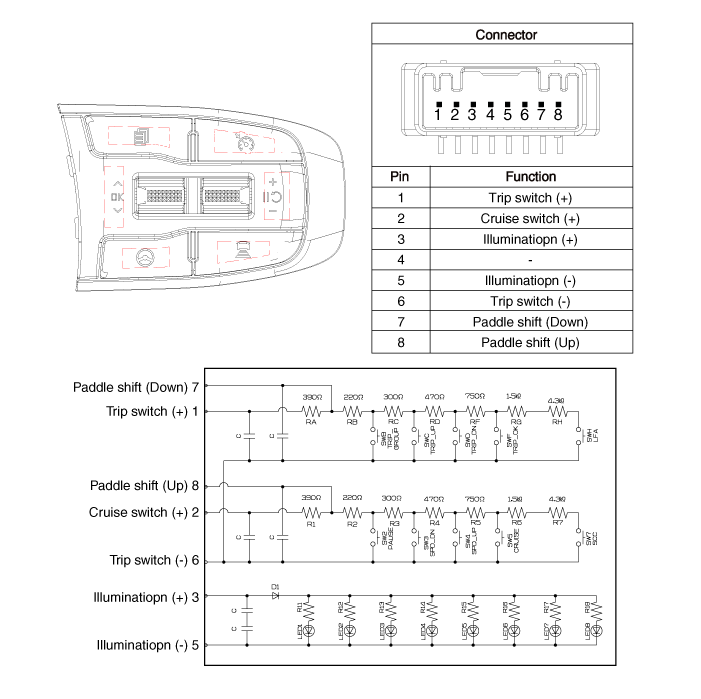

Circuit Diagram

Repair procedures
Removal
1.

Remove the steering wheel remote controller. [RH]

(Refer to Body Electrical System - "Steering Wheel Remote Controller")

Installation
1.

Install in the reverse order of removal.

Inspection
1.

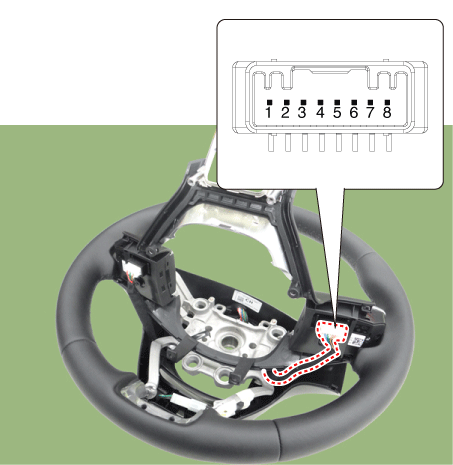

Check for resistance between terminals in each switch position.

Switch
Connector terminal
Resistance (±3%)
Pause
2-6
610 Ω
Speed (Down)
910 Ω
Speed (Up)
1.38 kΩ
Cruise ON/OFF
2.13 kΩ
SCC
7.93 kΩ
Trip group
1-6
610 Ω
Trip (Up)
910 Ω
Trip (Down)
1.38 kΩ
Trip (OK)
2.13 kΩ
LFA
7.93 kΩ
