Kia Optima: Chassis / Drive Shafts and Boots

Kia Optima DL3 2019-2020 Service and Repair Manual / Maintenance / Chassis / Drive Shafts and Boots

Repair procedures

Inspection

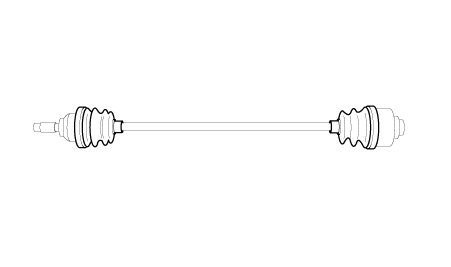

Drive shaft

1.	Check the drive shaft boots for loose clamps, cracks, grease leaks, kinks or damage
