Kia Optima DL3: Features of your vehicle / Instrument cluster

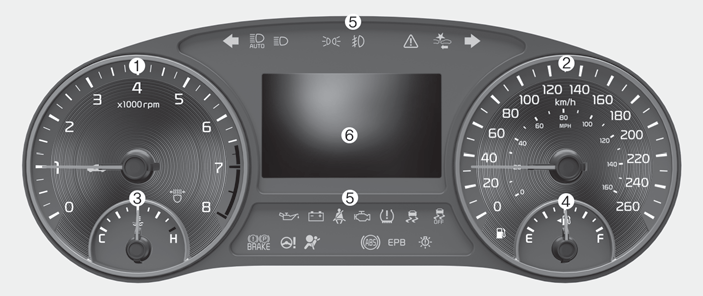

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display
❈ The actual cluster in the vehicle may differ from the illustration. For more details, refer to the "Gauges" in this chapter.
Electric type The outside rearview mirror can be folded or unfolded by pressing the switch when the ignition switch is ACC or ON position as below.
Adjusting Instrument Cluster Illumination The brightness of the instrument panel illumination is changed by pressing the illumination control button (“+” or “-”) when the ignition switch or Engine Start/Stop button is ON, or the taillights are turned on.
