| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the heater and blower assembly. (Refer to Heater - "Heater Unit") |
| 3. |

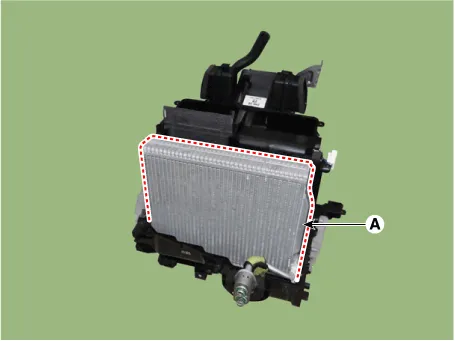

Loosen the mounting screws, lock pin and remove the evaporator core cover (A).
|
| 4. |

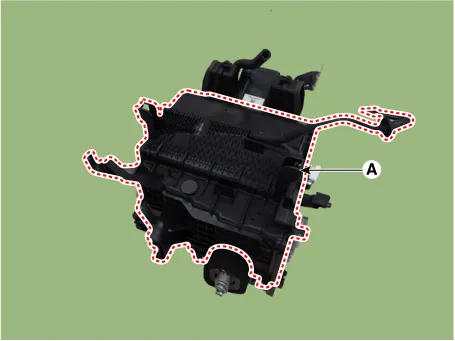

Remove the evaporator cover (A) from heater unit.
|
| 5. |

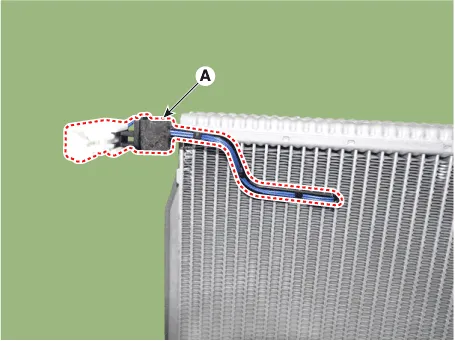

Separate the evaporator temperature sensor (A) from the evaporator core.
|
| 6. |
To install, reverse the removal procedure. |
