Kia Optima DL3: Your vehicle at a glance / Instrument panel overview

Kia Optima DL3 2019-2025 Owner's Manual / Your vehicle at a glance / Instrument panel overview

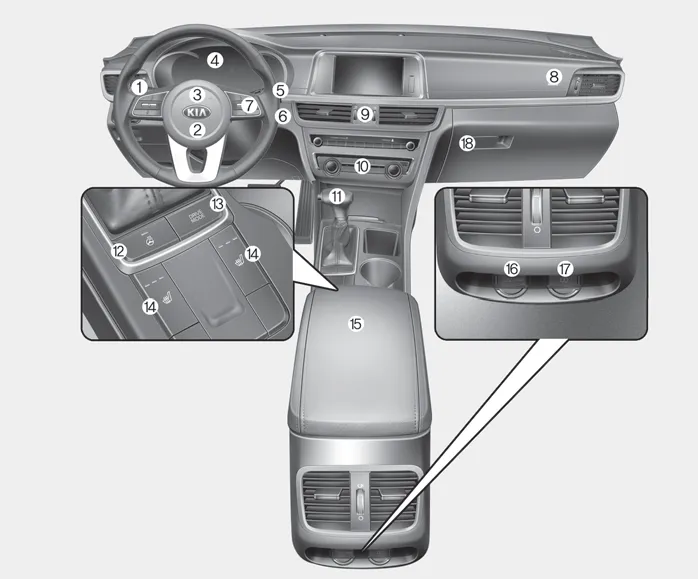

1. Light control/Turn signals
2, Driver’s front air bag
3. Horn
4. Instrument cluster
5. Wiper and washer control lever
6. Ignition switch
Engine start/stop button
7. Cruise control
8. Passenger’s front air bag
9. Hazard warning flasher
10. Manual climate control system
Automatic climate control system
11. Shift lever A/T
12. Heated steering wheel button
13. Drive mode button
14. Seat warmer
15. Center console storage box
16. Power outlet
17. USB charger
18. Glove box
