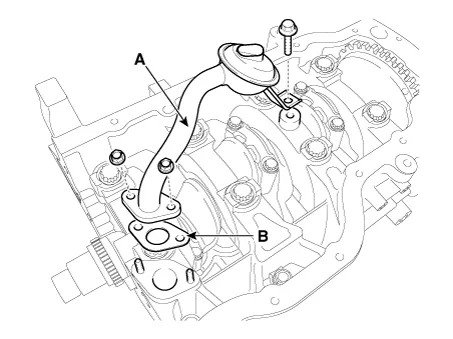

| 2. |

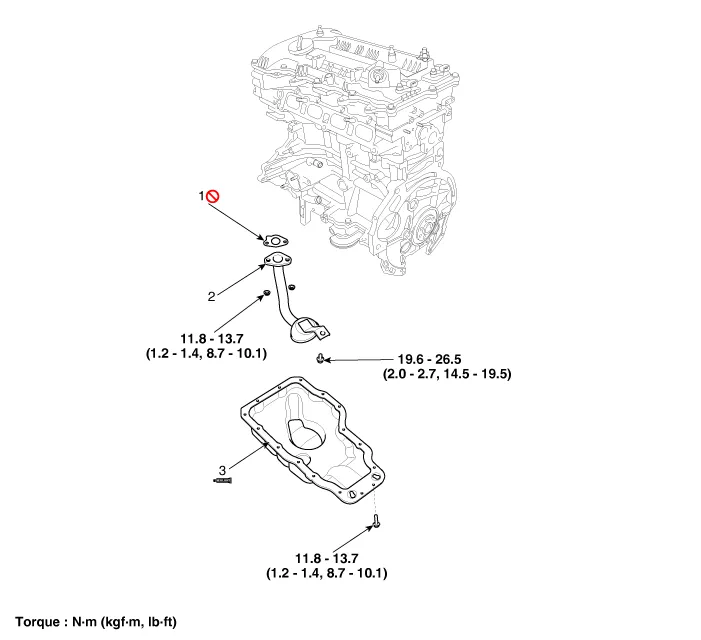

Install the oil pan.
| (1) |
Using a gasket scraper, remove all the old packing material from
the gasket surfaces.
|
| (2) |
The sealant locations on the oil pan and the lower crankcase
must be free of harmful foreign materials, oil, dust and moisture.
Spraying cleaner on the surface and wiping with a clean duster.
|
| (3) |

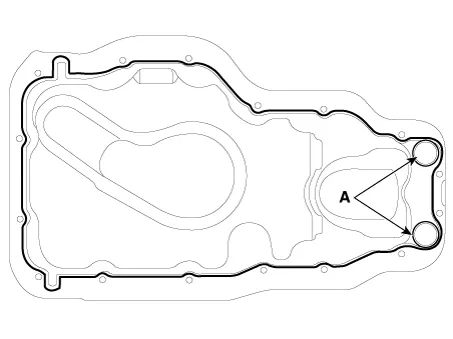

After applying liquid sealant on the oil pan, assemble it within
5 minutes after sealant was applied. Continuous bead of sealant
should be applied to prevent any path of oil leakage.
|
Bead width
Whole section : 4.0 - 5.0 mm (0.16 - 0.20 in.)
Section A : 1.5 - 2.5 mm (0.06 - 0.10 in.)
Sealant : Threebond 1217H (Hyundai Gray RTV)
|
|
• |
When applying sealant gasket, sealant must not
be protruded into the inside of oil pan.
|
|
• |
If the sealant is applied to the bottom surface
of the lower crankcase, it should be the same position
as the oil pan.
|
|
|
| (4) |

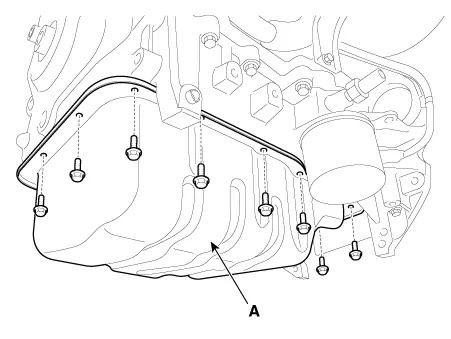

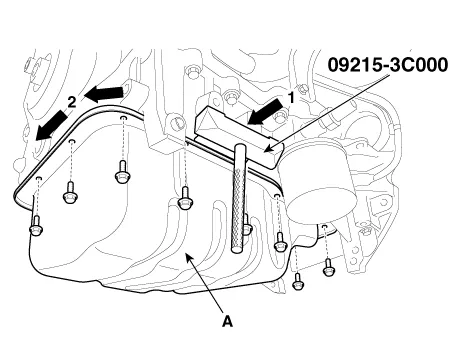

Install the oil pan (A). Uniformly tighten the bolts in several
passes.
|
Tightening torque :
11.8 - 13.7 N•m (1.2 - 1.4 kgf•m, 8.7 - 10.1 lb•ft)
|
|
After assembly, wait at least 30 minutes before filling
the engine with oil.
|
|
Always use a new drain plug gasket.
|
|
|
