Kia Optima DL3: Features of your vehicle / Rear view monitor

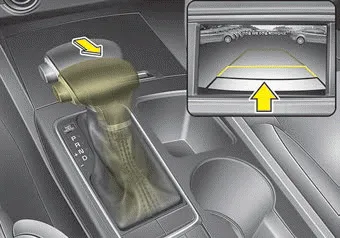

The rear view monitor will activate with the ignition switch ON and the shift lever in the R (Reverse) position.

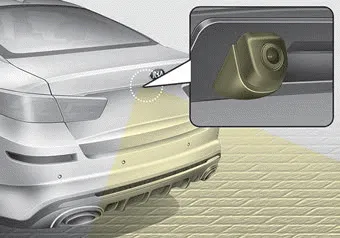

The system is a supplemental system that shows the area behind the vehicle through the audio screen while backing up.

  • This system is a supplemental system only. It is the responsibility of the driver to always check the inside/outside rearview mirrors and the area behind the vehicle before and while backing up.
  • Always keep the camera lens clean. If lens is covered with foreign matter, the camera may not operate normally.

WARNING - Backing & using camera

Never rely solely on the rear view camera. You must always use methods of viewing the area behind you including looking over each shoulders as well as continuously checking all three rear view mirrors. Due to the difficulty of ensuring that the area behind you remains clear, always back-up slowly and stop immediately if you suspect that a person, and especially a child, might be behind you.

    If you don’t hear an audible warning sound or if the buzzer sounds intermittently when shifting the gear to the R (Reverse) position, this may indicate a malfunction in the parking distance warning-reverse.

    Battery saver function The purpose of this feature is to prevent the battery from being discharged if the lights are left in the ON position. The system automatically shuts off the parking lights 30 seconds after the ignition key is removed and the driver’s door is opened and closed.
