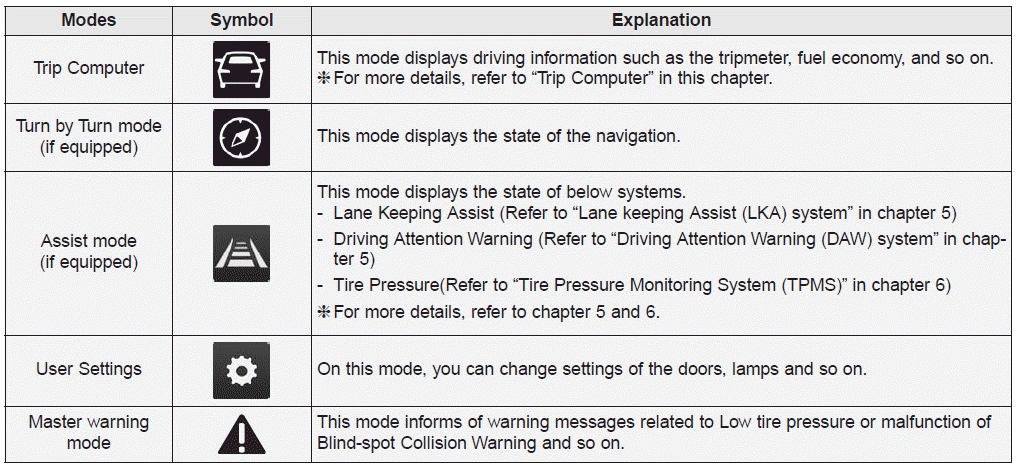

Trip computer mode

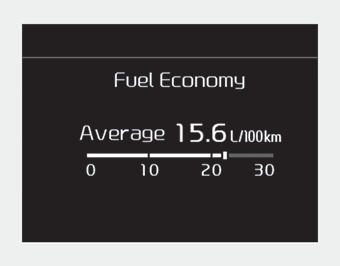

This mode displays driving information like the tripmeter, fuel economy, and so on.
❈ For more details, refer to “Trip Computer” in this chapter.
Turn By Turn mode

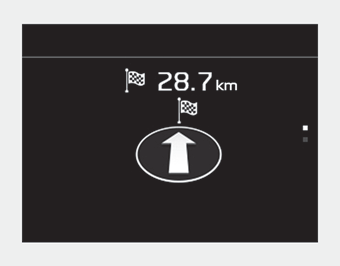

This mode displays the state of the navigation.
Assist mode

■ LKA

■ DAW

■ TPMS
Assist mode displays the state of below systems.
- Lane Keeping Assist
- Driver Attention Warning

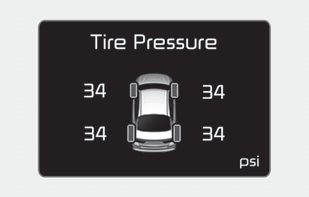

- Tire Pressure
Service mode

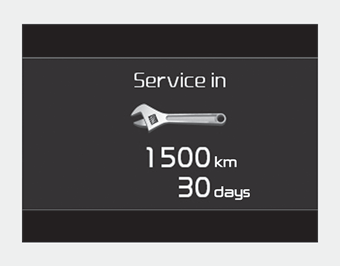

When Service Required is set, the remaining distance/time before service is required appears on the LCD screen.
From the point at which the remaining distance to drive amounts to 1,500 km (900 mi) or the remaining time amounts to 30 days, The Service Required message automatically displays and remains on the LCD screen for a number of seconds every time the ignition switch or Engine Start/Stop Button is ON.
When Service Required is set a Service Required Alarm message pops up when an aggregated amount of miles/time driven reaches a certain point.
With Service Required mode, press OK button for more than 5 sec. The values will return to initial setting values.
❈For more details about Service Required Setting refer to user Settings Mode in this chapter.
❈Service Required Setting
In the event of Battery Cable Disconnection or Fuse Switch turned OFF, the Service Required Setting values (an amount of miles/time driven) may change. In such cases, re-enter Service Required Setting values.
Master warning mode

• This warning light informs the driver of the following situations
- Forward Collision-Avoidance Assist malfunction
- Blind-Spot Collision Warning radar blind
- Lamp malfunction
- High Beam Assist malfunction
- Tire Pressure Monitoring System (TPMS) malfunction
- Electronic Control Suspension (ECS) malfunction
The Master Warning Light illuminates if one or more of the above warning situations occur.
If the warning situation is solved, the master warning light will be turned off.
Description On this mode, you can change setting of the doors, lamps, and so on. WARNING Do not adjust the User Setting while driving. You may lose your steering control which could cause an accident and bodily injury.
