Kia Optima: LCD display / User Settings Mode

Kia Optima DL3 2019-2020 Owner's Manual / Features of your vehicle / LCD display / User Settings Mode

Description

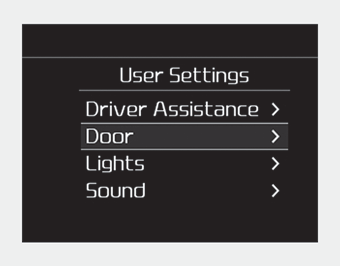

On this mode, you can change setting of the doors, lamps, and so on.

WARNING

Do not adjust the User Setting while driving.

You may lose your steering control which could cause an accident and bodily injury.

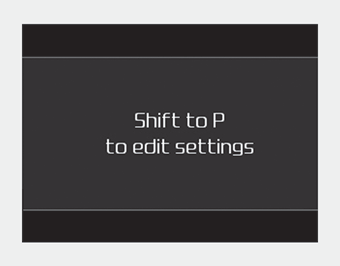

Shift to P to edit settings

This warning message appears if you try to adjust the User Settings while driving.

For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

Driver Assistance (if equipped)

• Driver Attention Warning :

- Choose the alert stage (High sensitivity/Normal sensitivity/Off) of the Driver Attention Warning. ❈For more details, refer to “Driver Attention Warning (DAW)” in chapter 5.

• Lane Safety :

- Active LKA : To activate the active LKA mode.
- Standard LKA : To activate the standard LKA mode.
- Lane Departure Warning : To activate the lane departure warning function.

❈For more details, refer to “Lane Keeping Assist (LKA) System” in chapter 5.

• Forward Collision-avoidance Assist (FCA) :

- To activate or deactivate the FCA system.

❈For more details, refer to “Forward Collision-avoidance Assist (FCA)” in chapter 5.

• Forward Collision Warning :

- Choose the inital warning alert time of the forward collision warning. (Late/Normal/Early)

❈For more details, refer to “Forward Collision-avoidance Assist (FCA)” in chapter 5.

• Blind-Spot Collision Warning Timing :

- Choose the initial warning alert time of the blind-spot collision warning timing. (Normal/Late)

❈For more details, refer to “Blind-Spot Collision Warning” in chapter 5.

• Rear Cross-Traffic Collision Warning :

- If this item is checked, the rear cross-traffic collision Warning function will be activated.

❈For more details, refer to “Blind-spot Collision Warning” in chapter 5.

Door

• Automatically Lock :

- Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph).
- Enable on Shift : All doors will be automatically locked if the transmission shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.

• Automatically Unlock :

- Disable : The auto door unlock operation will be canceled.
- Vehicle Off/On key out : All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the Engine Start/Stop button is set to the OFF position.
- On Shift to P : All doors will be automatically unlocked if the automatic transmission shift lever is shifted to the P (Park) position.

• Two Press Unlock :

- If this item is checked, the two press unlock will be activated. The driver's door will unlock if the door unlock button is pressed. When the door unlock button is pressed again within 4 seconds, the remaining doors will unlock.

• Horn Feedback :

- If this item is checked, the horn feedback function will be activated.

• Smart Trunk (if equipped) :

- If this item is checked, the smart trunk function will be activated.

❈For more details, refer to “Smart Trunk” in this chapter.

Lights

• One Touch Turn Signal :

- Off: The one touch turn signal function will be deactivated.
- 3, 5, 7 Flashes : The lane change signals will blink 3, 5 or 7 times when the turn signal lever is moved slightly.

❈For more details, refer to “Lighting” in this chapter.

• Headlight Delay :

- If this item is checked, the head lamp delay function will be activated.

❈For more details, refer to “Lighting” in this chapter.

• Welcome Light(if equipped) :

- If this item is checked, the welcome light function will be activated.

Sound

• Parking Distance Warning Volume (if equipped) :

- Adjust the Park Assist System volume. (Level 1 ~ 3)

• Welcome Sound (if equipped) :

- If this item is checked, the welcome sound function will be activated.

Convenience

• Seat Easy Access (if equipped) :

- Off : The seat easy access function will be deactivated.

- Normal/Extended : When you turn off the engine, the driver’s seat will automatically move rear 7.6 cm (3 in.) (Enhanced) for you to enter or exit the vehicle more comfortably.

If you change the ignition switch or Engine Start/Stop Button from OFF position to the ACC position, the driver’s seat will return to the original position.

❈For more details, refer to “Driver Position Memory System” in chapter 3.

• Welcome Mirror/Light (if equipped) :

- If this item is checked, the welcome mirror/light function will be activated.

• Wiper/Light Display (if equipped) :

- If this item is checked, the wiper/light display will be activated.

• Gear Position Pop-up (if equipped) :

- If this item is checked, the gear position pop-up display will be activated.

• Icy Road Warning (if equipped) :

- If this item is checked, the icy road warning display will be activated.

Service interval

Other

Language (if equipped)

Choose the language.

Reset

You can reset the menus in the User Settings Mode. All menus in the User Settings Mode are initialized, except language and service interval.
