Kia Optima DL3: Body (Interior and Exterior) / Roof Trim
Components and components location
| Components |

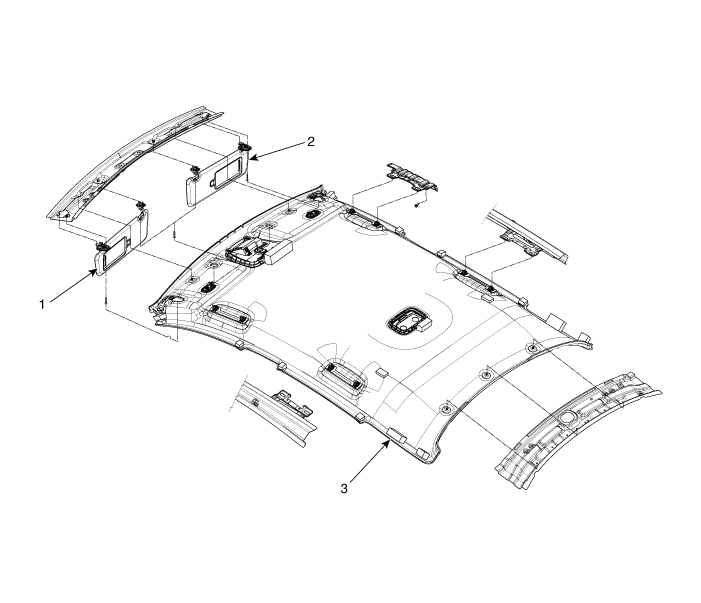

| [General Type] |
| 1. Sunvisor [LH] 2. Sunvisor [RH] |
3. Roof trim |

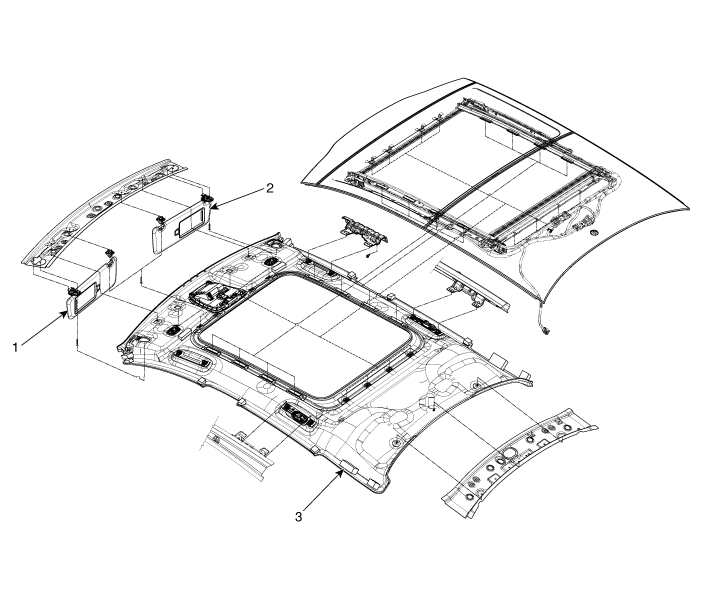

| [Panorama Sunroof Type] |
| 1. Sunvisor [LH] 2. Sunvisor [RH] |
3. Roof trim |
Components and components location Component Location 1. Cowl cross bar assembly Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Components and components location Component Location 1. Sunvisor 2. Retainer Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
