Kia Optima DL3 2019-2021 Service and Repair Manual / Body Electrical System / Audio/AVN System / Mic

Repair procedures
Inspection
1.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

2.

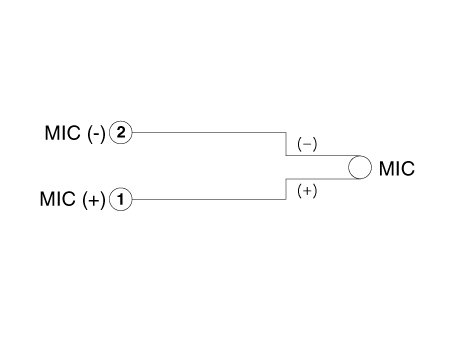

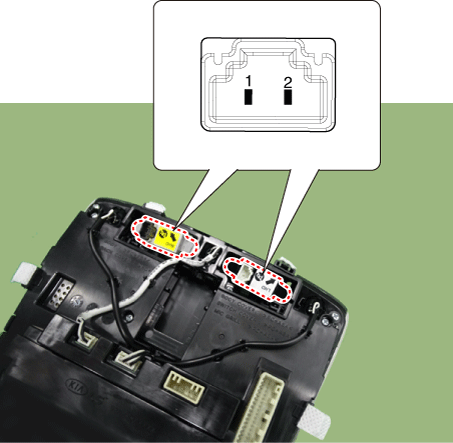

Check the continuity of between terminals.

Removal
1.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

2.

Remove the handsfree mic (A) after loosening the screws.

Installation
1.

Install in the reverse order of removal.
