Kia Optima: Panorama Sunroof / Movable Glass

Kia Optima DL3 2019-2022 Service and Repair Manual / Body (Interior and Exterior) / Panorama Sunroof / Movable Glass

Repair procedures
Replacement
1.

Open movable glass completely pressing panorama sunroof switch.

2.

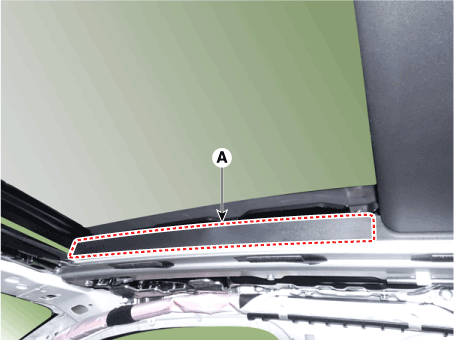

Remove the slide folding cover (A).

3.

Close movable glass completely pressing panorama sunroof switch .

4.

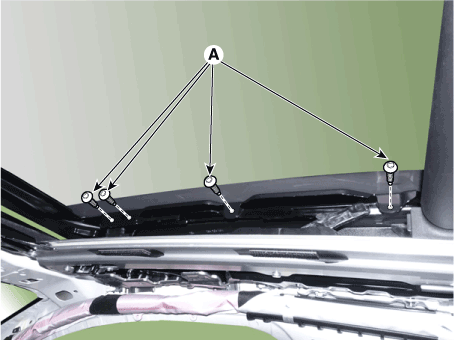

Loosen screws mounted on the glass using star wrench (T25) then remove movable glass (A).



Be careful not to damage screws.

5.

Install in the reverse order of removal.



Carry out considerable step adjustment after exchanging movable glass.

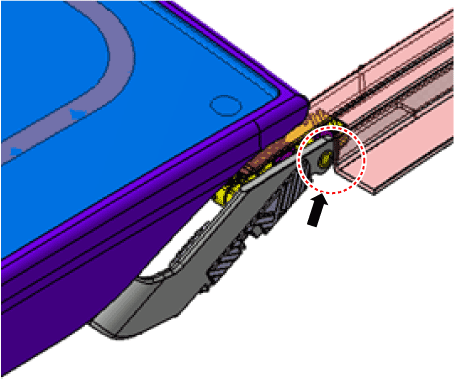

When movable glass is installed tilt lever should be inserted first and be careful that tilt lever shoe should not be damaged by rear rail interference.
