Components and components location

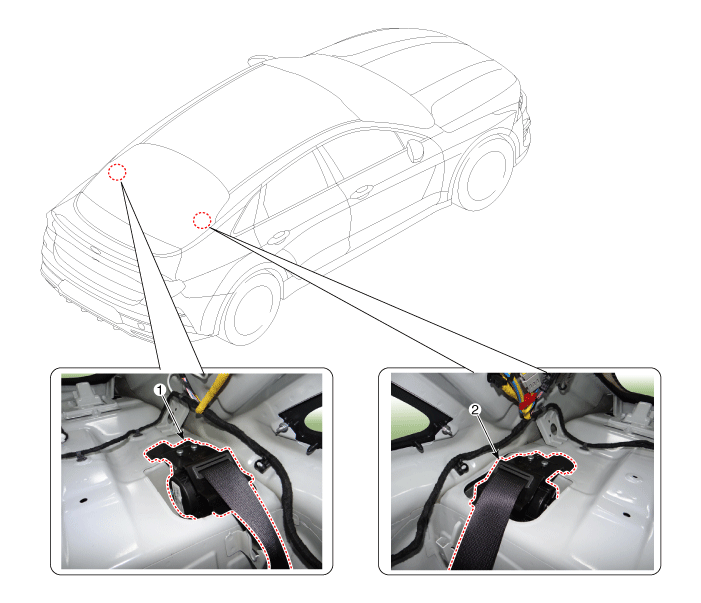

Component Location

1. Rear seat belt retractor [LH]
2. Rear seat belt retractor [RH]

Repair procedures
Replacement


When installing the belt, make sure not to damage the retractor.

Put on gloves to prevent hand injuries.

1.

Remove the rear seat assembly.

(Refer to Rear Seat - "Rear Seat Assembly")

2.

Remove the rear package tray trim.

(Refer to Trunk Trim - "Rear Package Tray Trim")

3.

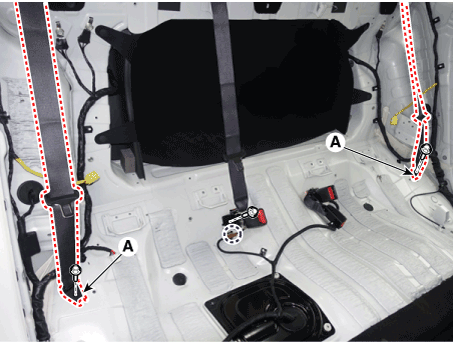

Loosen the mounting bolts and remove the rear seat belt lower anchor (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

4.

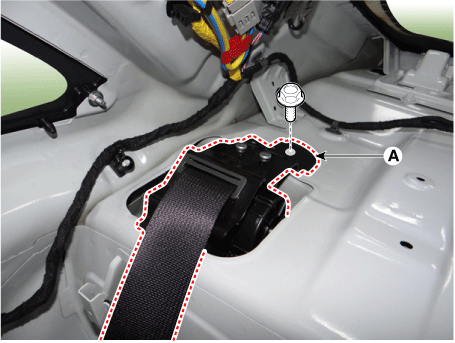

Loosen the mounting bolt and remove the rear seat belt retractor (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

[LH]

[RH]

5.

To install, reverse the removal procedure.
