Kia Optima: Panorama Sunroof / Roller Blind

Kia Optima DL3 2019-2020 Service and Repair Manual / Body (Interior and Exterior) / Panorama Sunroof / Roller Blind

Repair procedures
Replacement
1.

Remove the roof trim.

(Refer to Roof Trim - "Roof Trim Assembly")

2.

Open the roller blind using the panorama sunroof switch.



Leave 10 - 20cm (0.3937 - 0.7874 in) of the roller blind unopened.

3.

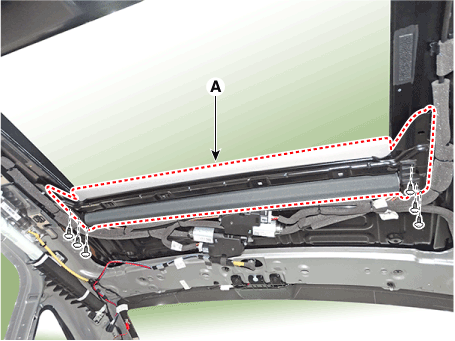

Remove the roller blind lower support (A) by loosening the mounting screws.

4.

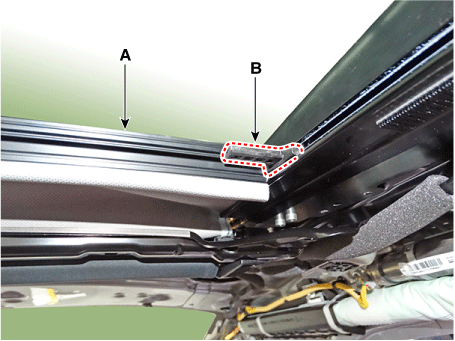

Using the screwdriver or removal, remove the roll blind (A) by pushing the lock pin (B) upside of blind.

5.

To install, reverse the removal procedure.
