Kia Optima: Intake And Exhaust System / Variable Intake Solenoid(VIS) Actuator
Repair procedures
1. |

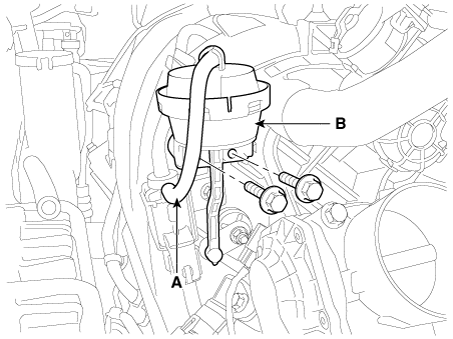

Disconnect the vacuum hose (A).
|
2. |
Remove the variable Intake solenoid (VIS) actuator (B)
Tightening torque :
9.8 - 11.8 N•m (1.0 - 1.2 kgf•m, 7.2 - 8.7lb•ft)
|

|
3. |
Install in the reverse order of removal.
|
