Kia Optima: Roof Trim / Assist Handle
Components and components location
Repair procedures
| • |
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Put on gloves to prevent hand injuries.
|
|
| 1. |

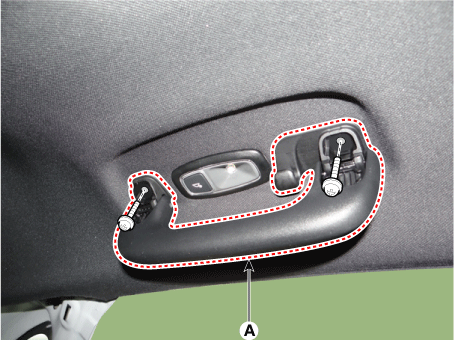

After lifting up the assist handle caps and loosening the mounting screws,
remove the assist handle (A).
|
| 2. |
To install, reverse the removal procedure.
|
Components and components location

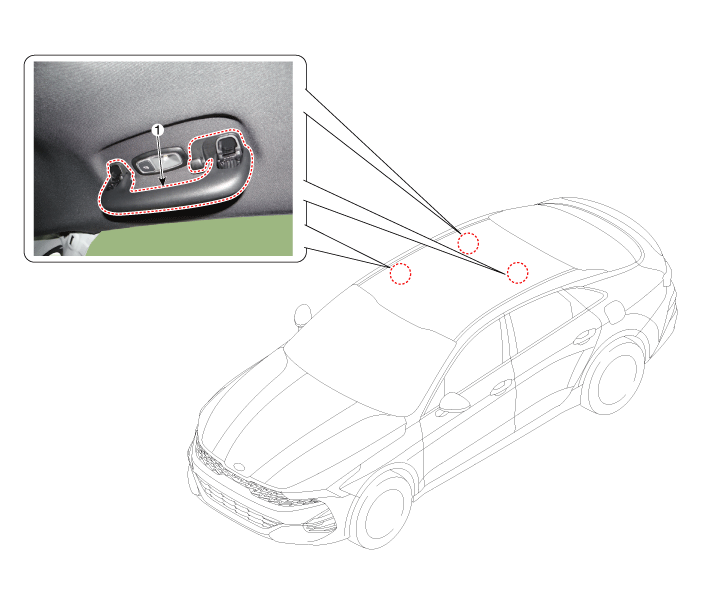

Component Location
1. Sunvisor
2. Retainer
Repair procedures
Replacement
& ...
Components and components location
Component Location
1. Roof trim assembly
Repair procedures
Replacement
