Kia Optima DL3: Roof Trim / Sunvisor

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor

Components and components location

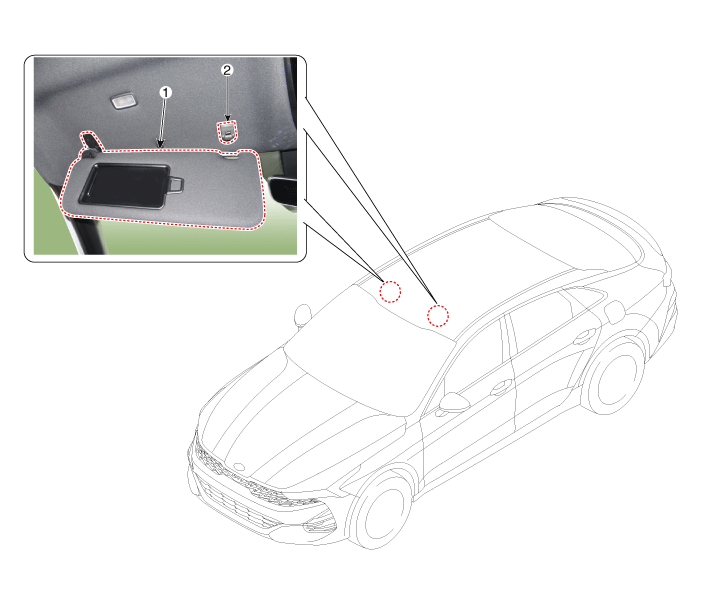

Component Location

1. Sunvisor

2. Retainer

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Put on gloves to prevent hand injuries.

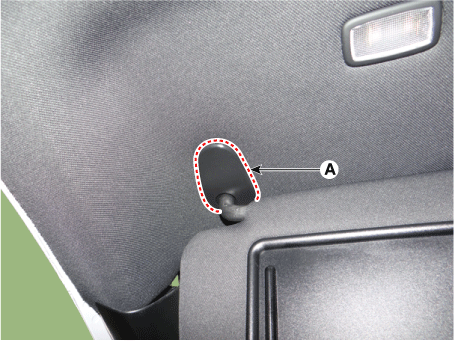

1.	Remove the sunvisor mounting cover (A).

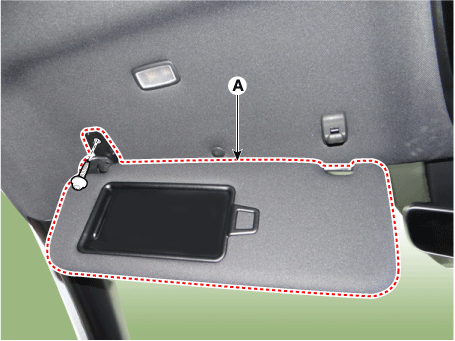

2.	Loosen the mounting screw, and then remove the sunvisor (A).

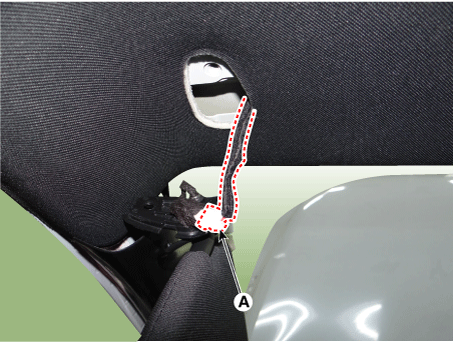

3.	Disconnect the connector (A).

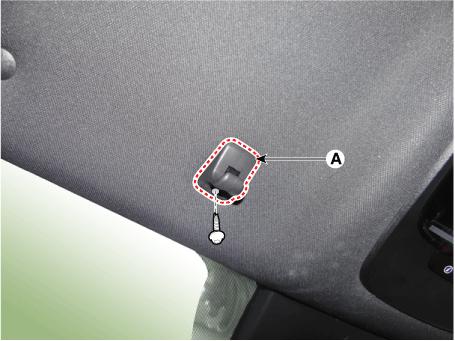

4.	Loosen the mounting screw, and then remove the retainer (A).

5.	To install, reverse the removal procedure.
