Kia Optima: Front Door / Front Door Window Glass

Kia Optima DL3 2019-2021 Service and Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Window Glass

Components and components location

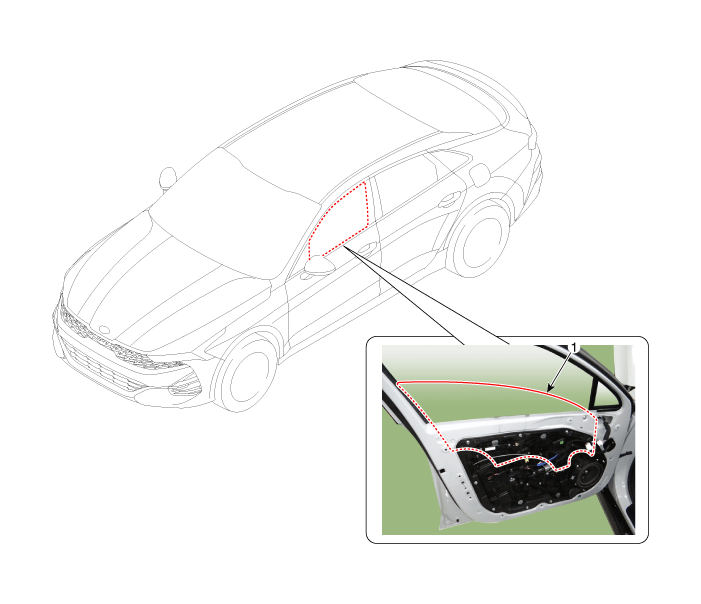

Component Location

1. Front door window glass


Repair procedures
Replacement


When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Put on gloves to prevent hand injuries.

1.

Remove the front door trim.

(Refer to Front Door - "Front Door Trim")

2.

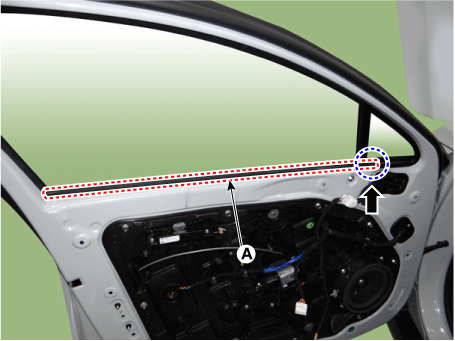

Remove the front door belt inside weatherstrip (A).

3.

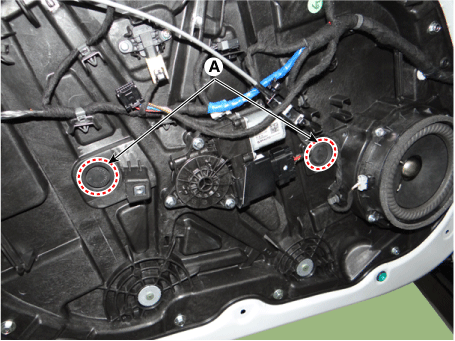

Separate the mounting plug hole (A) from the front door module.

4.

Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.



Be careful not to drop the glass and/or scratch the glass surface.

5.

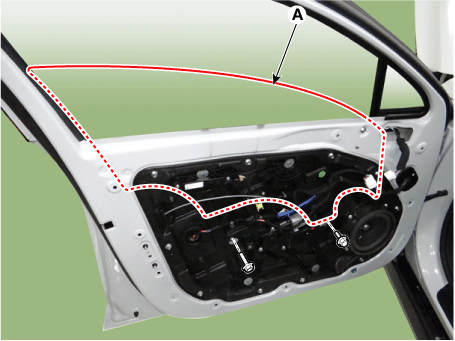

Loosen the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

Tightening torque :

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

6.

To install, reverse the removal procedure.



Roll the glass up and down to see if it moves freely.

Adjust glass position as needed.

Make sure the door lock and opens properly.

Check the glass run channel for damage and replace the damaged channel.
