Components and components location

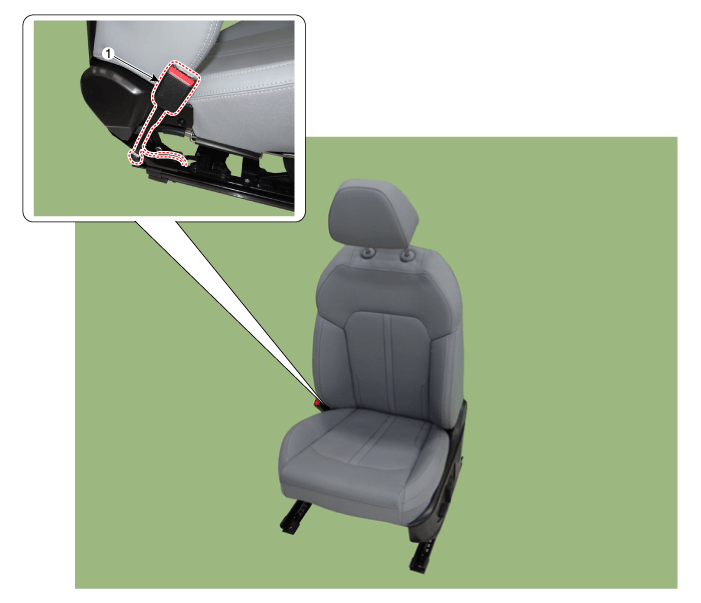

Component Location

1. Front seat belt buckle


Repair procedures
Replacement


When installing the belt, make sure not to damage the retractor.

Put on gloves to prevent hand injuries.

1.

Remove the front seat assembly.

(Refer to Front Seat - "Front Seat Assembly")

2.

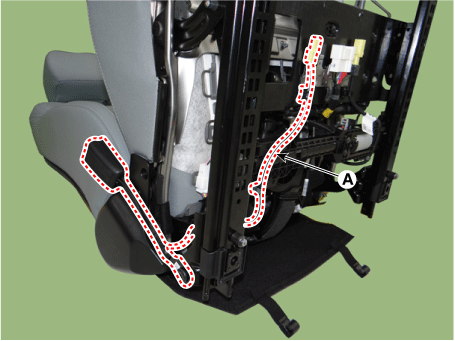

Separate the front seat belt buckle wiring (A).

3.

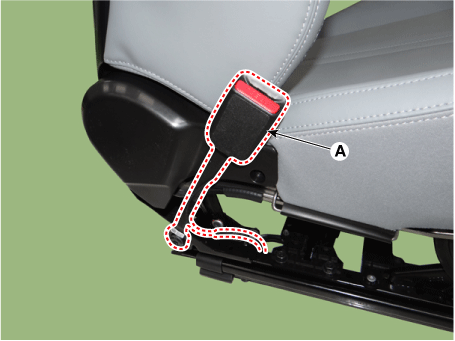

Loosen the mounting bolt and remove the front seat belt buckle (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

4.

To install, reverse the removal procedure.



Make sure that the connectors are connected completely

Replace any damaged clips (or pin-type retainers).
