Components and components location

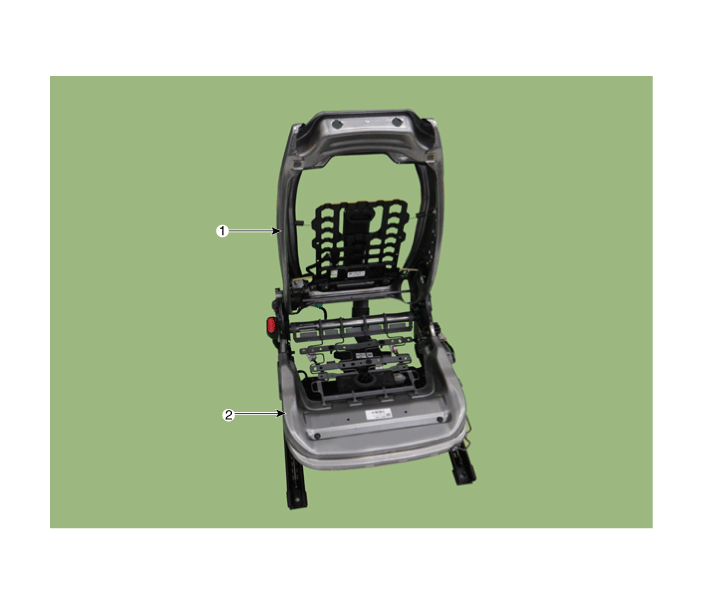

Component Location

1. Front seat back frame assembly
2. Front seat cushion frame assembly

Repair procedures
Replacement


When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Take care not to bend or scratch the trim and panels.

Put on gloves to prevent hand injuries.

1.

Remove the front seat back cover.

(Refer to Front Seat - "Front Seat Back Cover")

2.

Remove the front seat cushion cover.

(Refer to Front Seat - "Front Seat Cushion Cover")

3.

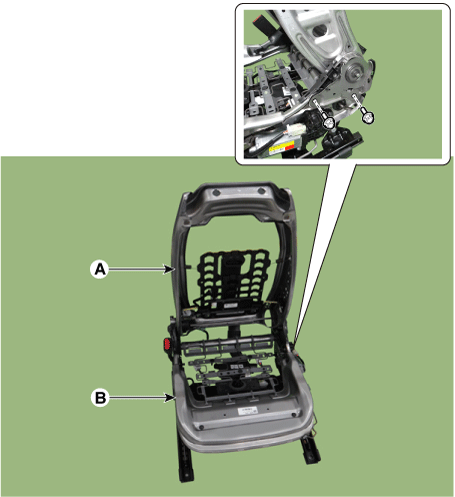

Loosen the mounting bolts and remove the front seat back frame (A) and front seat cushion frame (B).

Tightening torque :

44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

4.

To install, reverse the removal procedure.



For the seat equipped with side airbag, remove the side airbag from the seat frame assembly.

(Refer to Restraint - "Side Airbag (SAB) Module")

Before service, be fully aware of precautions and service procedure relevant to air bag.

(Refer to Restraint - "Side Airbag (SAB) Module")
