| Removal |
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| 1. |
Disconnect the negative battery terminal. |
| 2. |

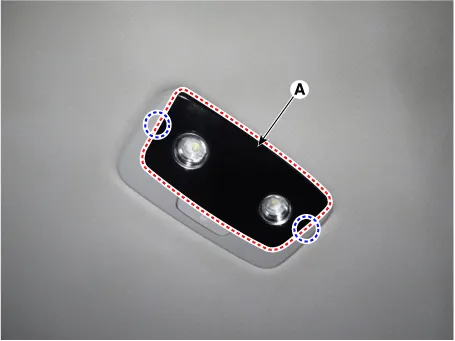

Remove the room lamp lens (A) by using a flat-tip screwdriver or remover.
|
| 3. |

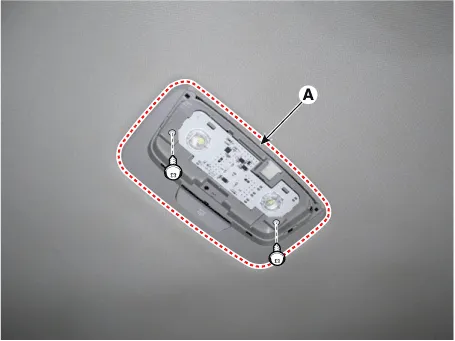

Remove the room lamp (A) by loosening the mounting screws.
|
| 4. |

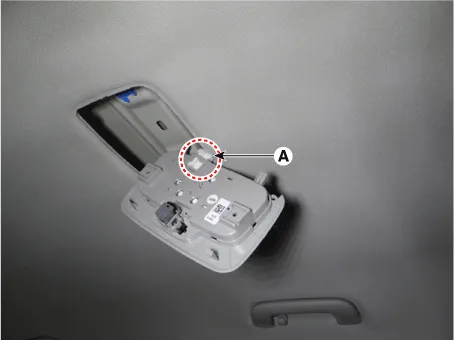

Disconnect the room lamp connector (A).
|
| 5. |

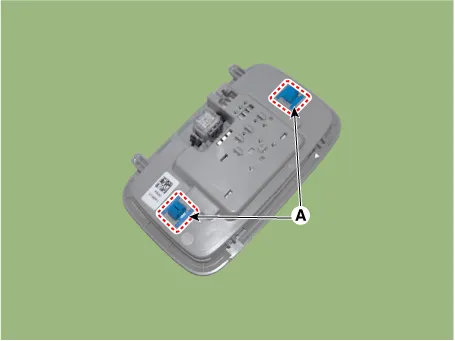

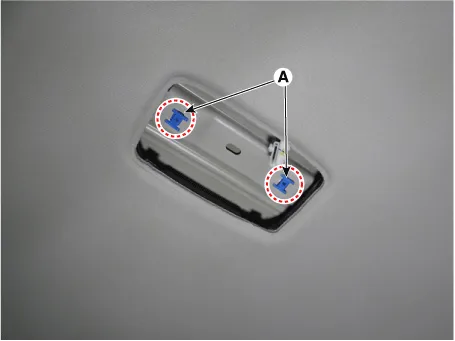

Remove the room lamp mounting clips (A).
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
