Components and components location

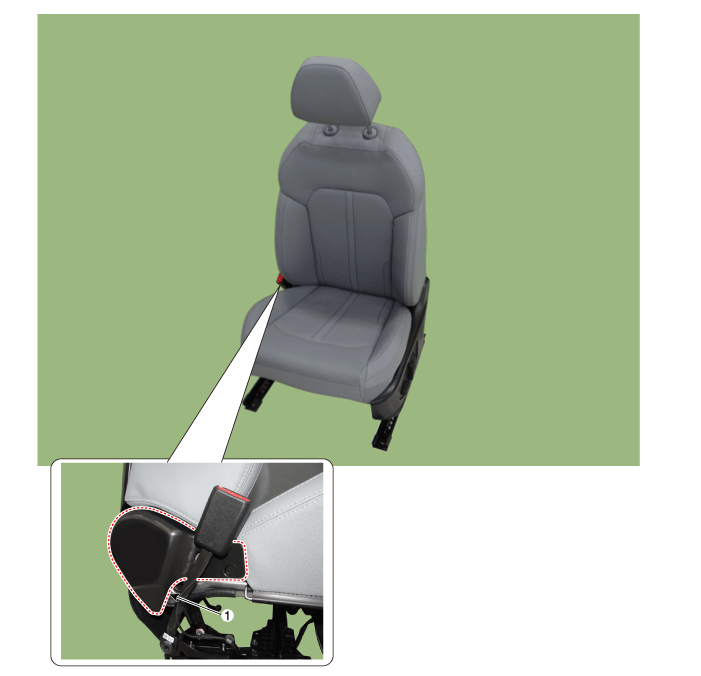

Component Location

1. Front seat inner shield cover

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Take care not to bend or scratch the trim and panels.

•	Put on gloves to prevent hand injuries.

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

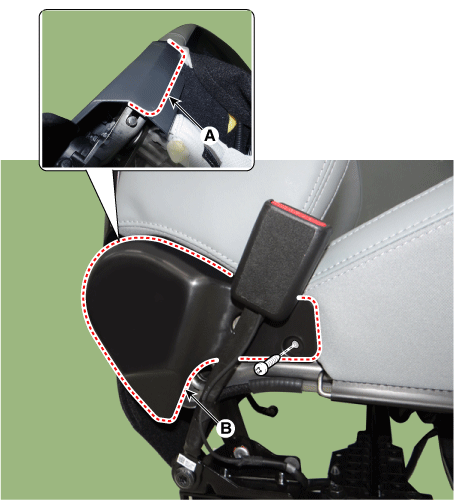

2.	Remove the protector (A), loosen the mounting screw and remove the front seat inner shield cover (B).

3.	To install, reverse the removal procedure.
