Kia Optima DL3: Power Door Mirrors / Power Door Mirror Switch

Kia Optima DL3 2019-2026 Service and Repair Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch

Schematic diagrams

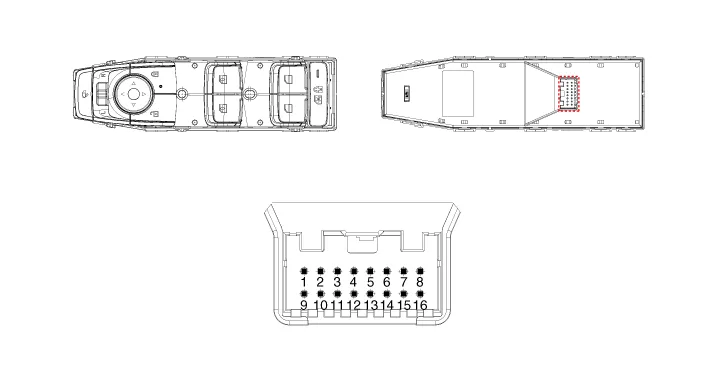

Connector and Terminal Function

Pin
Function
1
B-CAN (Low)
2
B-CAN (High)
3
Ground (Assist safety)
4
Assist safety
5
LIN (For IMS)
6
Battery (+)
7
IGN1
8
Driver safety
9
IMS Switch (For IMS) / Mirror Common (For Non IMS)
10
Mirror unfolding motor (Non IMS)
11
Mirror folding motor (Non IMS)
12
Mirror horizontal LH (Non IMS)
13
Mirror vertical LH (Non IMS)
14
Mirror vertical RH (Non IMS)
15
Mirror horizontal RH (Non IMS)
16
Ground

Repair procedures

Inspection

Diagnosis With KDS

1.

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS).

The diagnostic system (KDS) provides the following information.

(1)

Self diagnosis : Checking failure and code number (DTC)

(2)

Current data : Checking the system input/output data state

(3)

Actuation test : Checking the system operation condition

(4)

Additional function : Controlling other features including system option setting and zero point adjustment

2.

Select the "Car model" and the 'DDM' to be checked in order to check the vehicle with the tester.
3.

Select the 'Current Data' menu to search the current state of the input/output data.
4.

To force actuate the input value of the module to be checked, select option 'Actuation Test'.
Removal
1.

Remove the power window main switch.

(Refer to Power Windows - "Power Window Switch")

Installation
1.

Install in the reverse order of removal.

    Components and components location Component Location 1. Power door mirror 2. Power door mirror switch
