Kia Optima DL3: Exhaust Emission Control System / Catalytic Converter
Description and operation
| Description |
The catalytic converter of the gasoline engine is a three way catalyst. It oxidizes carbon monoxide and hydrocarbons (HC), and separates oxygen from the oxides of nitrogen (NOx).
Repair procedures
| Removal |

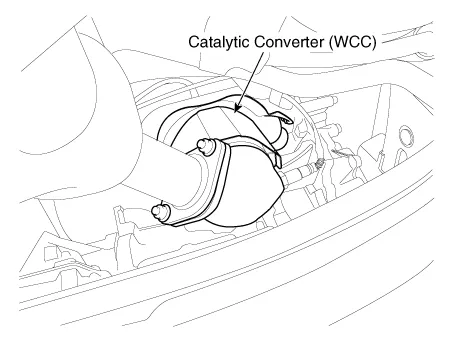

| [Catalytic Converter (WCC)] |
| 1. |
Remove the exhaust manifold. (Refer to Engine Mechanical System - "Exhaust Manifold") |

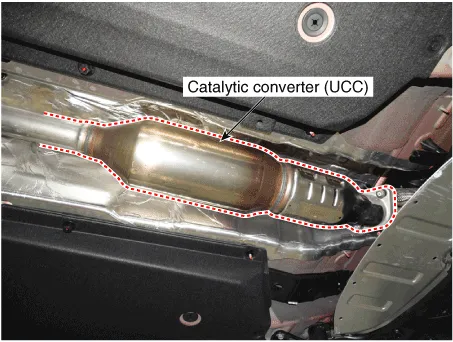

| [Catalytic Converter (UCC)] |
| 1. |
Remove the Center Muffler. (Refer to Engine Mechanical System - "Center Muffler") |
| Installation |
| 1. |
Install in the reverse order of removal. |
