Kia Optima DL3: Cruise Control System (CC) / Cruise Control (CC) Switch

Kia Optima DL3 2019-2026 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Cruise Control System (CC) / Cruise Control (CC) Switch

Components and components location

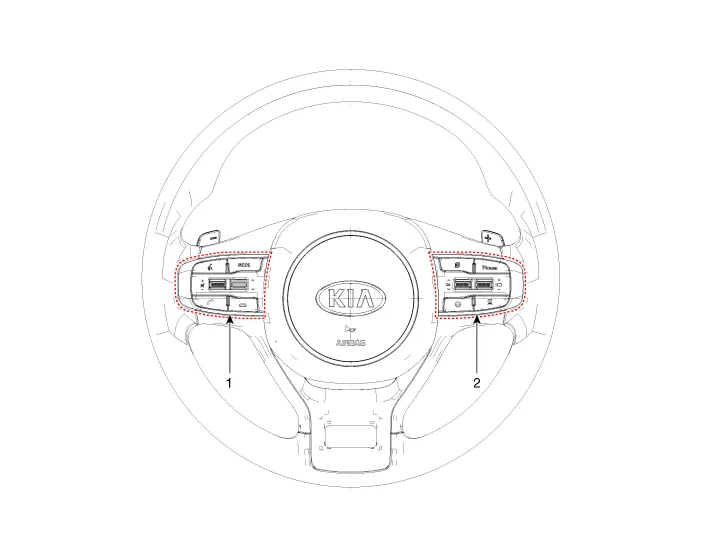

Components

1. Left remote control switch (Audio + Bluetooth + Voice)

2. Right remote control switch (Trip + SCC + LFA)

Schematic diagrams

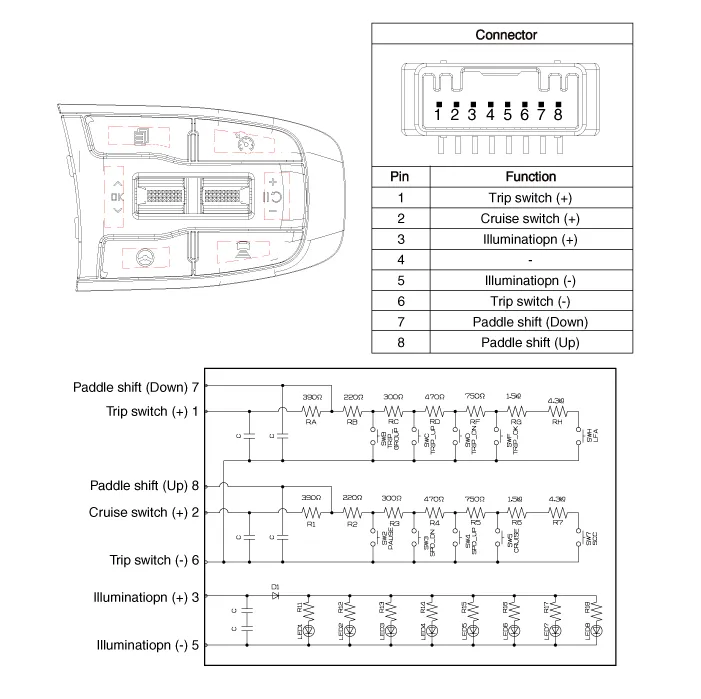

Circuit Diagram

Repair procedures

Removal

1.	Remove the steering wheel remote controller. [RH] (Refer to Body Electrical System - "Steering Wheel Remote Controller")

Installation

1.	Install in the reverse order of removal.

Inspection

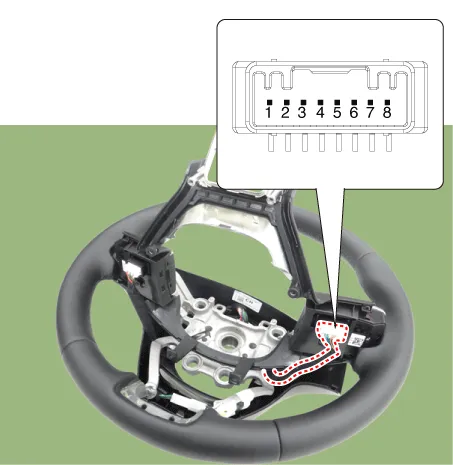

Check for resistance between terminals in each switch position.

Switch	Connector terminal	Resistance (±3%)
Pause	2-6	610 Ω
Speed (Down)		910 Ω
Speed (Up)		1.38 kΩ
Cruise ON/OFF		2.13 kΩ
SCC		7.93 kΩ
Trip group	1-6	610 Ω
Trip (Up)		910 Ω
Trip (Down)		1.38 kΩ
Trip (OK)		2.13 kΩ
LFA		7.93 kΩ
