Kia Optima DL3: Interior features / Cup holder

WARNING - Hot liquids

Do not place uncovered cups with hot liquid in the cup holder while the vehicle is in motion. If the hot liquid spills, you may burn yourself. Such a burn to the driver could lead to loss of control of the vehicle.

CAUTION

Keep your drinks sealed while driving to prevent spilling your drink. If liquid spills, it may get into the vehicle's electrical/electronic system and damage electrical/ electronic parts.

✽ NOTICE

When cleaning spilled liquids, do not use heat to dry the cup holders. This may damage the cup holder.

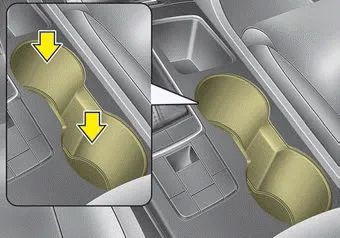

■ Front seat

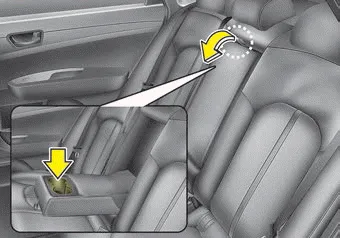

■ Rear seat

Cups or small beverage cans may be placed in the cup holders.

    Bottles may be placed in the holder. ✽ NOTICE Only bottles should be placed in the holder labeled "Bottles Only."
