Kia Optima DL3: Blower / Blower Motor
Repair procedures
| Inspection |
| 1. |
Connect the battery voltage and check the blower motor rotation.
|
| 2. |
If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation. |
| 3. |
Replace the blower motor if it is proved that there is a problem with it. |
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

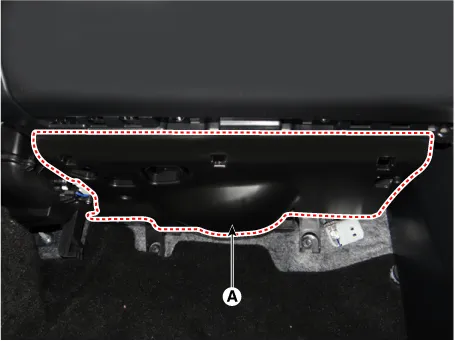

Remove the crash pad under cover (A).
|
| 3. |

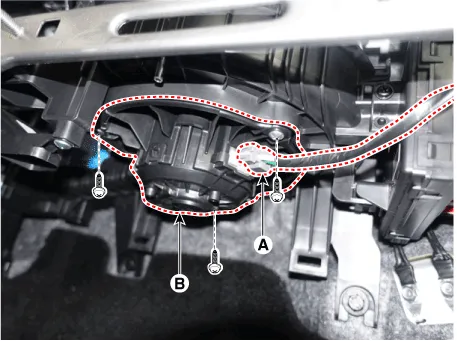

Separate the connector (A), loosen the mounting screws and remove the blower motor (B).
|
| 4. |
To install, reverse the removal procedure. |
Components and components location Component Location 1. Blower unit assembly Components 1.
Repair procedures Inspection 1. Measure the resistance between the terminals. 2. measured resistance is not within specification, the blower resistor must be replaced.
