Kia Optima DL3: Interior Trim / Door Scuff Trim

Kia Optima DL3 2019-2025 Service and Repair Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim

Repair procedures

Replacement

[Front door scuff trim]


•

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•

Put on gloves to prevent hand injuries.
1.

Remove the front door body side weatherstrip.

(Refer to Front Door - "Front Door Side Weatherstrip")

2.

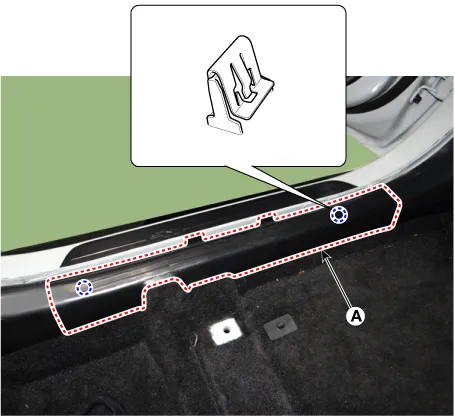

Using a remover and remove the front door scuff trim (A).
3.

To install, reverse the removal procedure.



Replace any damaged clips.

[Rear door scuff trim]


•

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•

Put on gloves to prevent hand injuries.
1.

Remove the rear seat cushion assembly.

(Refer to Rear Seat - "Rear Seat Assembly")

2.

Remove the rear door body side weatherstrip.

(Refer to Rear Door - "Rear Door Side Weatherstrip")

3.

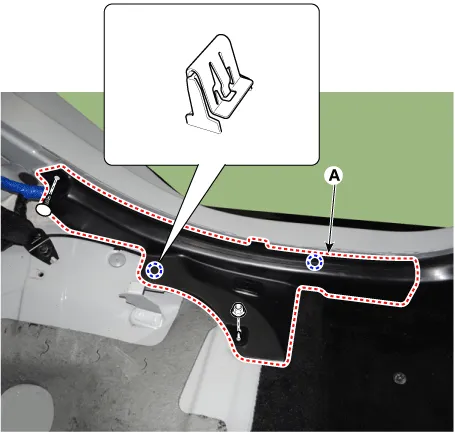

Loosen the mounting screw and nuts, remove the rear door scuff trim (A).
4.

To install, reverse the removal procedure.



Replace any damaged clips.
