Kia Optima DL3: Body (Interior and Exterior) / Interior Trim
Components and components location
| Components |

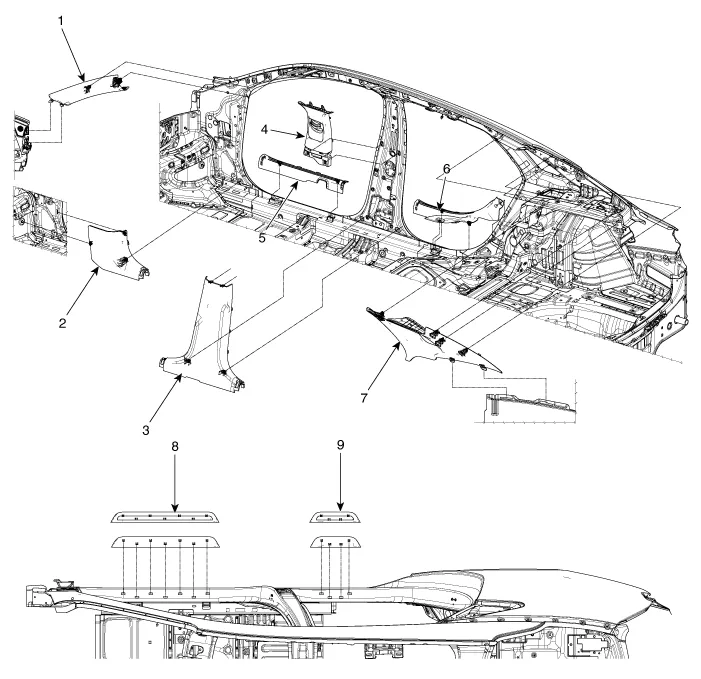

| 1. Front pillar trim 2. Cowl side trim 3. Center pillar lower trim 4. Center pillar upper trim 5. Front door scuff trim |
6. Rear door scuff trim 7. Rear pillar trim 8. Front door step trim 9. Rear door step trim |
Components and components location Component Location 1. Roof trim assembly Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Repair procedures Replacement [Front door scuff trim] • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
