Repair procedures

Replacement


Put on gloves to prevent hand injuries.


•

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•

When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•

Take care not to bend or scratch the trim and panels.

1.

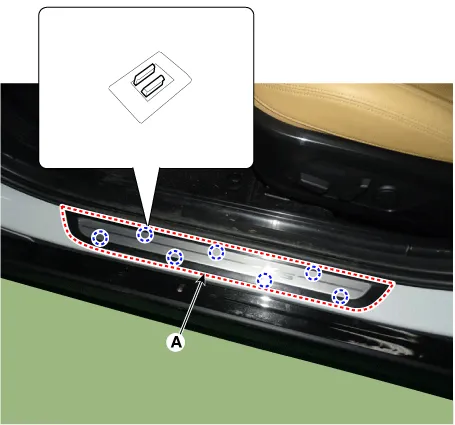

Using a screwdriver or remover, remove the door step trim (A).

[Front]

[Rear]
2.

To install, reverse the removal procedure.



Replace any damaged clips (or retainers or fasteners).
