Kia Optima DL3: Front Door / Front Door Inside Handle
Repair procedures
| Replacement |
| 1. |
Remove the front door trim. (Refer to Front Door - "Front Door Trim") |
| 2. |

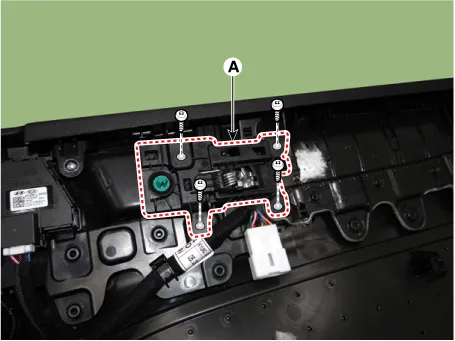

Loosen the mounting screws and remove the front door inside handle (A).
|
| 3. |
To install, reverse the removal procedure.
|
Components and components location Component Location 1. Front door module Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Components and components location Component Location 1. Front door outside handle Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
