Kia Optima DL3: Front Door / Front Door Module

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Module

Components and components location

Component Location

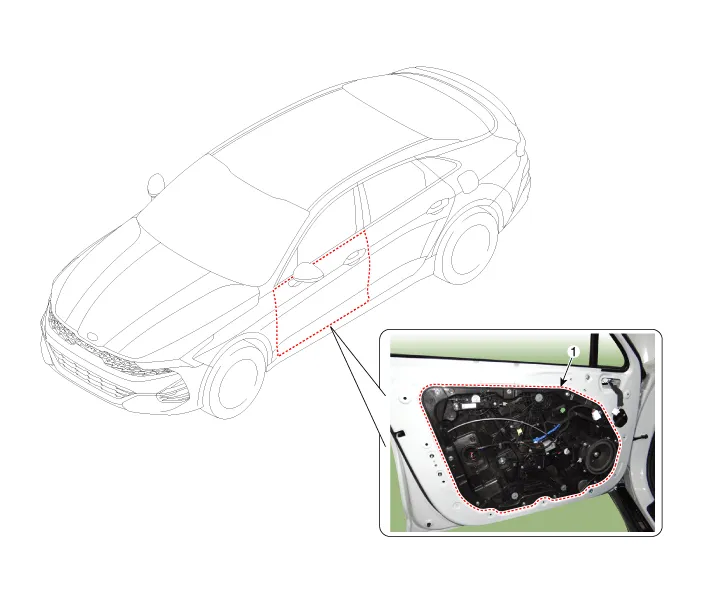

1. Front door module

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass")

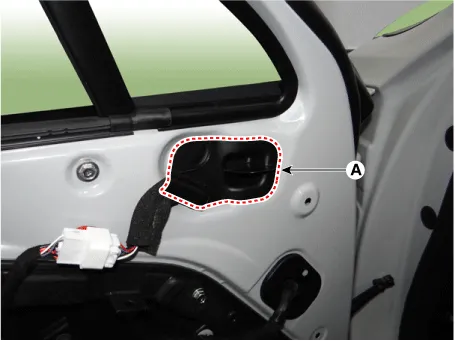

2.	Using a screwdriver or remover, remove the outside rear view mirror cover (A).

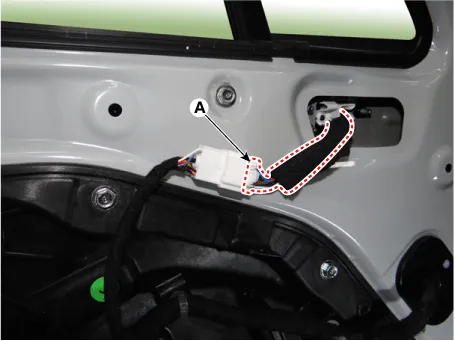

3.	Separate the outside mirror connector (A) and remove the mounting clip.

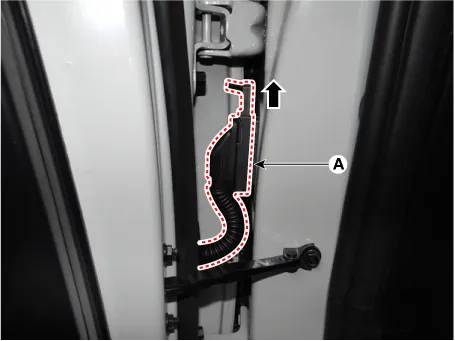

4.	Release the locking pin in the direction of the arrow and remove the front door main wiring connector (A).

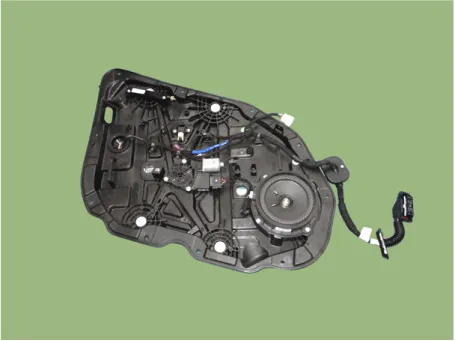

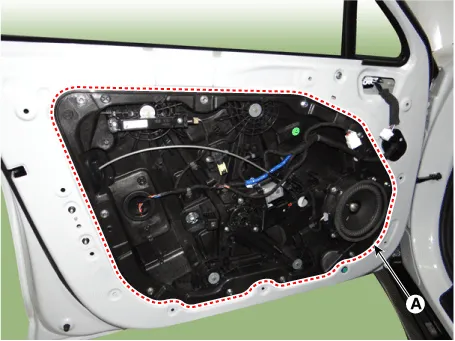

Loosen the mounting bolts and remove the front door module (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

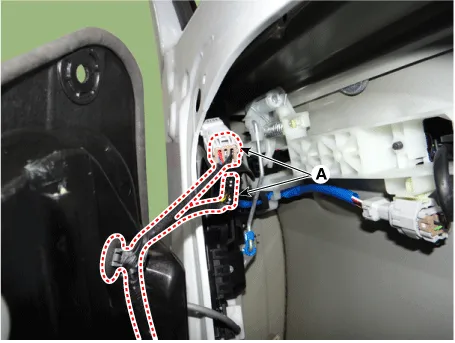

6.	Disconnect the front door latch connectors (A).

7.	Disconnect the connectors and front door module wiring harness.

8.	Remove the front speaker. (Refer to Body Electrical System - "Speakers")

9.	Remove the front power window motor. (Refer to Body Electrical System - "Power Window Motor")

10.

To install, reverse the removal procedure.

•	Make sure connectors are connected properly and each rod is connected securely.

•	Make sure the door locks / unlocks and opens / closes properly.
