Kia Optima DL3: Lighting / Front fog light

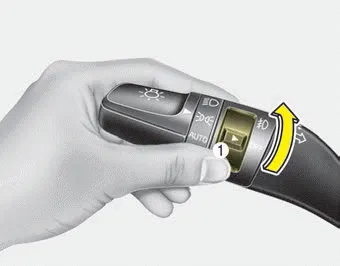

Fog lights are used to provide improved visibility when visibility is poor due to fog, rain or snow, etc. The fog lights will turn on when the fog light switch (1) is turned to the on position after the headlights are turned on.
To turn off the fog lights, turn the switch (1) to the off position.
When in operation, the fog lights consume large amounts of vehicle electrical power. Only use the fog lights when visibility is poor.
This warning message illuminates if there is a malfunction (burned-out bulb except LED lamp or circuit malfunction) with the headlamp. In this case, have your vehicle inspected by an authorized Kia dealer.
Windshield wiper/washer A : Wiper speed control (front) · MIST – Single wipe · OFF – Off · INT – Intermittent wipe AUTO* – Auto control wipe · LO – Low wiper speed · HI – High wiper speed B : Intermittent control wipe time adjustment C :Wash with brief wipes (front)*
