Description and operation

Description

The front impact sensor (FIS) is installed in the Front End Module (FEM). They are remote sensors that detect acceleration due to a collision at its mounting location. The primary purpose of the Front Impact Sensor (FIS) is to provide an indication of a collision. The Front Impact Sensor (FIS) sends acceleration data to the SRSCM.

Components and components location

Components Location

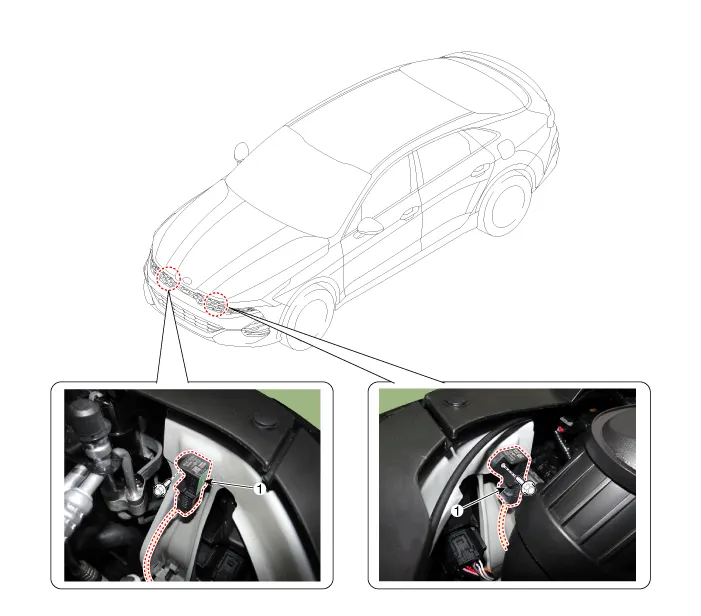

1. Front impact sensor (FIS)

Repair procedures

Removal

Disconnect the negative battery terminal.

After disconnecting the cables, wait at least 3 minutes.

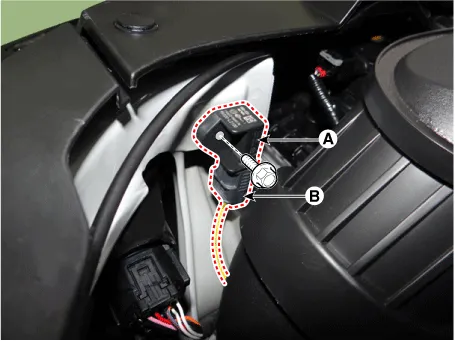

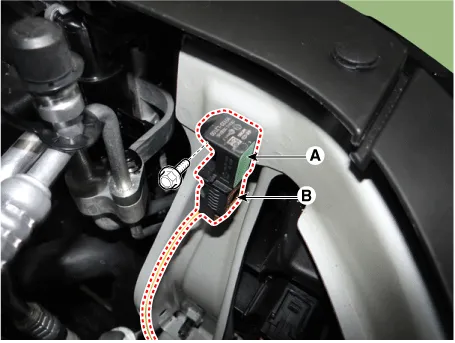

Remove the front impact sensor (A) by loosening the bolt after disconnecting the connector (B).

Tightening torque :

8.8 - 10.8 N·m (0.9 - 1.0 kgf·m, 6.5 - 7.2 lb·ft)

[LH]

[RH]

Installation

•	Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.

1.	Install a new front impact sensor.

Tighten the front impact sensor mounting bolt.

Tightening torque :

8.8 - 10.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb-ft)

3.	Connect the front impact sensor connector.

4.	Install the radiator assembly.

5.	Reconnect the battery negative cable.

6.	After installing the front impact sensor, confirm proper system operation : Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
