Kia Optima DL3: Lighting System / High Mounted Stop Lamp
Repair procedures
| Removal |
| 1. |
Disconnect the negative battery terminal. |
| 2. |

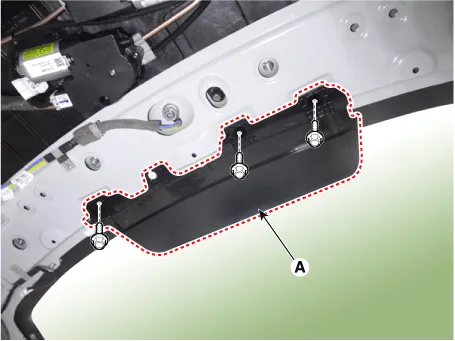

Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly") |
| 3. |

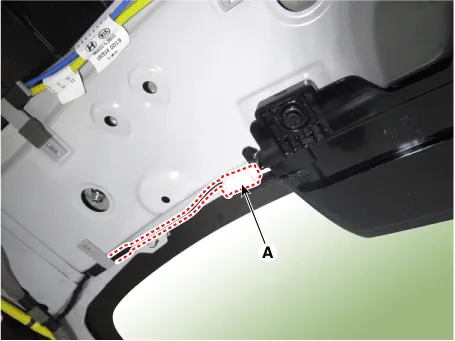

Disconnect the high mounted stop lamp connector (A).
|
| 4. |

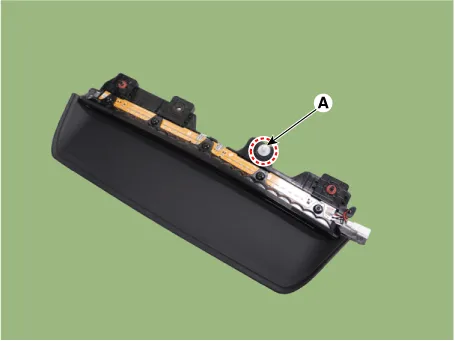

Remove the high mounted stop lamp (A) by loosening the mounting bolts.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
