Kia Optima DL3: Hood / Hood Lift

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Hood / Hood Lift

Repair procedures

Replacement

•

Removing or installing the hood lifter requires an assistant.

•

When removing the hood lifter, first remove the lower part and then upper part.

1.

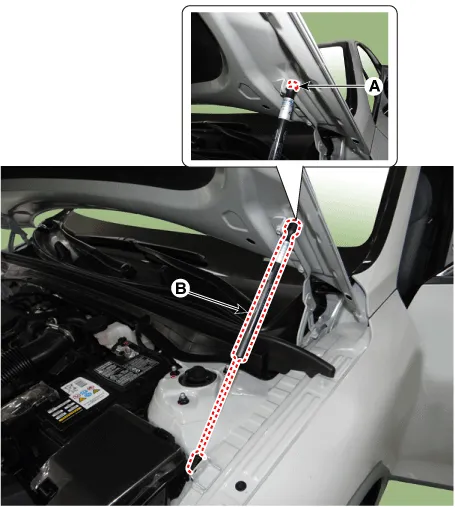

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter (B), and then remove the lifter from the bracket.

2.

To install, reverse the removal procedure.
