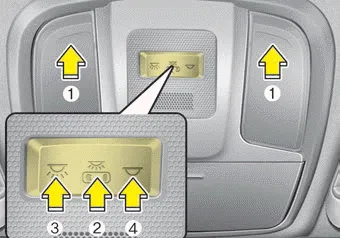

■ Type A

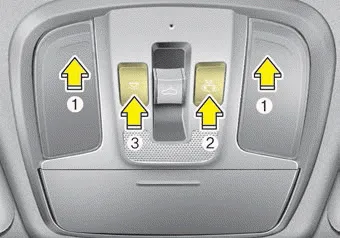

■ Type B
• Press the lens (1) to turn ON the map lamp.
To turn the map lamp OFF press the lens (1) again.
•
(2) : DOOR mode
- The map lamp and room lamp come on when a door is opened. The lamps go out
after approximately 30 seconds.
- The map lamp and room lamp come on for approximately 30 seconds when doors are
unlocked with a transmitter or smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 minutes if a door
is opened with the ignition switch in the ACC or LOCK/OFF position.
- The map lamp and room lamp will stay on continuously if the door is opened with
the ignition switch in the ON position.
- The map lamp and room lamp will go out immediately if the ignition switch is changed
to the ON position or all doors are locked.
- To turn off the DOOR mode, press the DOOR button (2) once again (not pressed).
✽ NOTICE
The DOOR mode and ROOM mode can not be selected at the same time.
Front Room Lamp:
• Type A
(3): Press this switch to turn the
front and rear room lamps on.
(4): Press this switch to turn the
front and rear room lamps off.
• Type B
(3): Press this switch to turn the
front and rear room lamps on and off.
■ Type A ■ Type B ■ Type C • : The light stays on at all times.
The trunk room lamp comes on when the trunk is opened. ✽ NOTICE The trunk room lamp comes on as long as the trunk lid opens. To prevent unnecessary battery drain, close the trunk lid securely after using the trunk.
