Kia Optima DL3: Interior lights / Room lamp

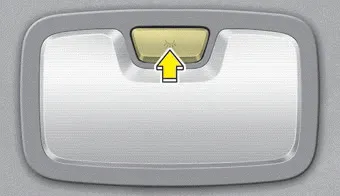

■ Type A

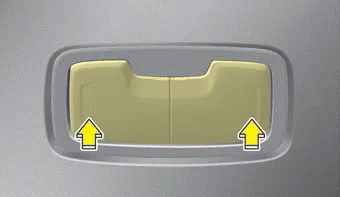

■ Type B

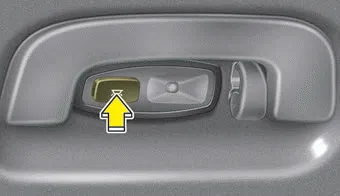

■ Type C
• :
The light stays on at all times.
Do not use the interior lights for extended periods when the engine is not running. It may cause battery discharge. WARNING - Interior Lights Do not use the interior lights when driving in the dark.
■ Type A ■ Type B • Press the lens (1) to turn ON the map lamp. To turn the map lamp OFF press the lens (1) again. • (2) : DOOR mode - The map lamp and room lamp come on when a door is opened.
