Kia Optima DL3: Rear Door / Rear Door Belt Outside Weatherstrip
Repair procedures
| Replacement |
| 1. |
Pull down the rear door window glass to the lowest level by pressing the power window glass switch. |
| 2. |

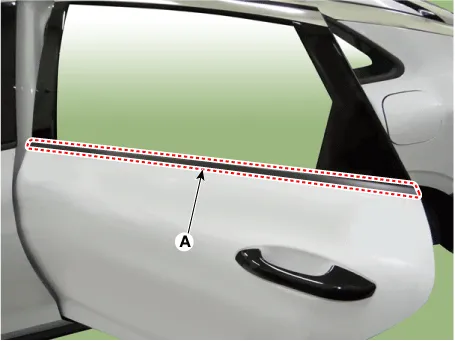

Remove the rear door belt outside weatherstrip (A).
|
| 3. |
To install, reverse the removal procedure.
|
Components and components location Component Location 1. Rear door outside handle Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Repair procedures Replacement 1. Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim") 2.
