Repair procedures

Replacement
1.

Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2.

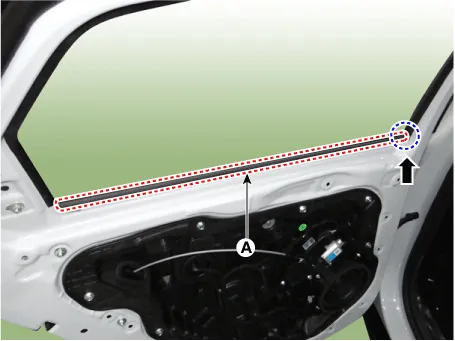

Remove the rear door belt inside weatherstrip (A).
3.

To install, reverse the removal procedure.


•

When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
•

Replace any damaged clips.
